Using Multi-Scale Attention for Semantic Segmentation

There’s an important technology that is commonly used in autonomous driving, medical imaging, and even Zoom virtual backgrounds: semantic segmentation. That’s the process of labelling pixels in an image as belonging to one of N classes (N being any number of classes), where the classes can be things like cars, roads, people, or trees. In the case of medical images, classes correspond to different organs or anatomical structures.

NVIDIA Research is working on semantic segmentation because it is a broadly applicable technology. We also believe that the techniques discovered to improve semantic segmentation may also help to improve many other dense prediction tasks, such as optical flow prediction (predicting the motion of objects), image super-resolution, and so on.

We have developed a new method for semantic segmentation that achieves record-setting state-of-the-art results in two common benchmarks: Cityscapes and Mapillary Vistas, as seen in the following tables. IOU is intersection over union, a metric that describes the accuracy of semantic prediction.

In Cityscapes, this method achieves 85.4 IOU on the test set, a sizable improvement over other entries, given how close each of those scores are to each other.

Entry	IOU
Ours	85.4
Panoptic DeepLab	85.2
HRNet-OCR SegFix	84.5
iFlytek-CV	84.4
MoKu Lab	84.3

Table 1. Results on Cityscapes test set.

With Mapillary, it achieves 61.1 IOU on the validation set with a single model, as compared to the next best result that used an ensemble to achieve 58.7.

Entry	IOU
Ours	61.1
Panoptic Deeplab (ensemble)	58.7
DeepLabV3+	52.0
Seamless	50.4

Table 2. Results on Mapillary Vistas semantic segmentation validation set.

Prediction results

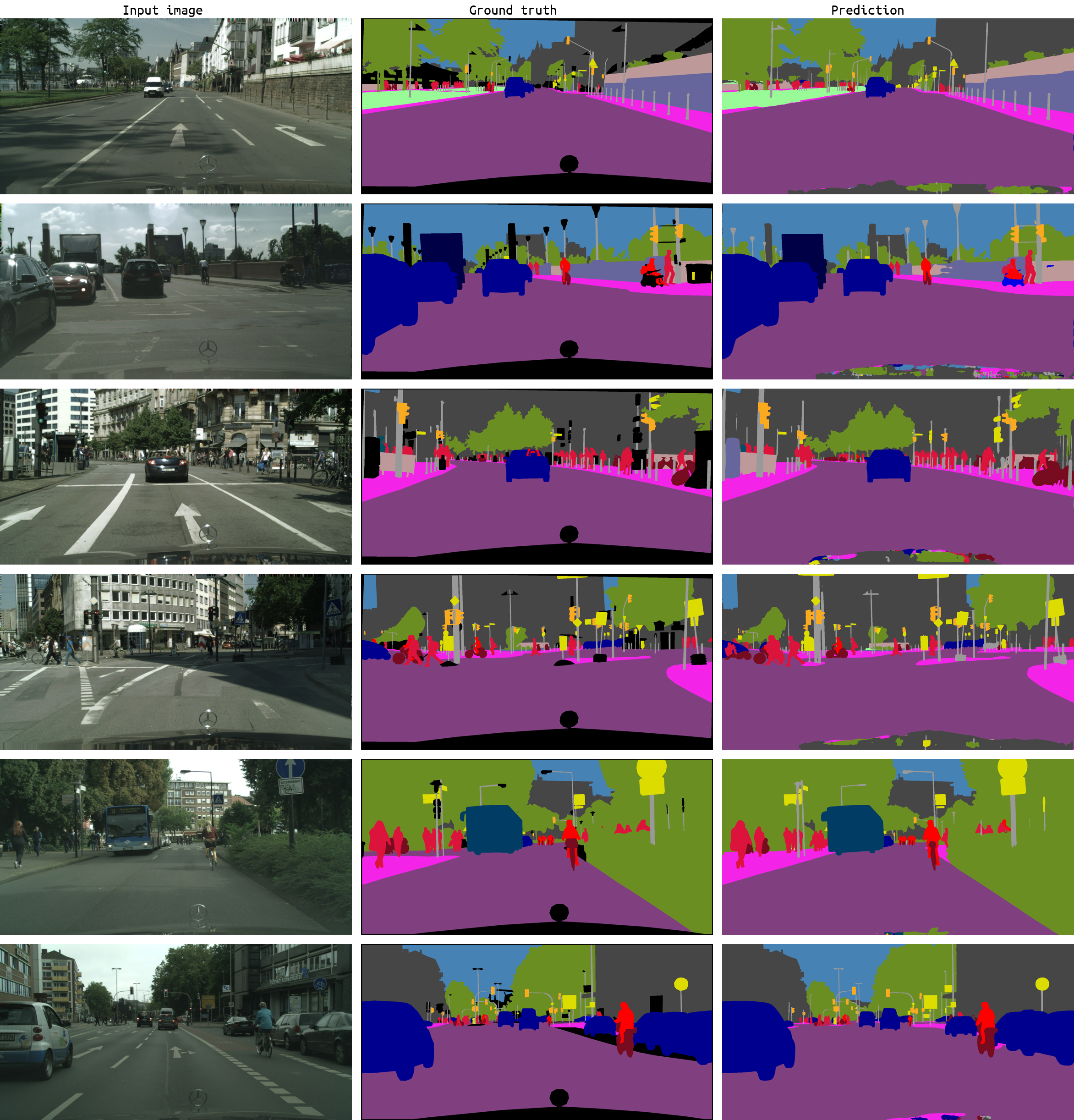

Figure 1 (video). Qualitative results on Cityscapes ‘stuttgart demo 1’, a held-out dataset.

Research journey

To develop this new method, we considered what specific areas of an image needed improvement. Figure 2 shows two of the biggest failure modes of current semantic segmentation models: errors with fine detail and class confusion.

Figure 2. Illustration of common failures modes for semantic segmentation as they relate to inference scale. In the first row, the thin posts are inconsistently segmented in the scaled down (0.5x) image, but better predicted in the scaled-up (2.0x) image. In the second row, the large road / divider region is better segmented at lower resolution (0.5x).

In this example, two issues are present: fine detail and class confusion.

The fine details of the posts in the first image are best resolved in the 2x scale prediction, but poorly resolved at 0.5x scale.
The coarse prediction of the road compared to median segmentation is much better resolved at 0.5x scale than 2x scale, where there is class confusion.

Our solution performs much better on both issues, with the class confusion all but gone in the road and much smoother and consistent prediction of the fine detail.

After identifying these failure modes, the team experimented with many different strategies, including different network trunks (for example, WiderResnet-38, EfficientNet-B4, Xception-71), as well as different segmentation decoders (for example, DeeperLab). We decided to adopt HRNet as the network backbone and RMI as the primary loss function.

HRNet has been demonstrated to be well-suited to computer vision tasks as it maintains a 2x higher resolution representation than the previous network WiderResnet38. The RMI loss provides a way to have a structural loss without having to resort to something like a conditional random field. Both HRNet and RMI loss were helpful to address both fine detail and class confusion.

To further address the primary failure modes, we innovated on two approaches: multi-scale attention and auto-labelling.

Multi-scale attention

To achieve the best results, it is common practice in computer vision models to use multi-scale inference. Multiple image scales are run through the network and the results are combined with average pooling.

Using average pooling as a combination strategy treats all scales as equally important. However, fine detail is usually best predicted at higher scales and large objects are better predicted at lower scales, where the receptive field of the network is better able to understand the scene.

Learning how to combine multi-scale predictions at a pixel level can help to address this issue. There is prior work on this strategy, with Chen’s approach in Attention to Scale being the closest. In Chen’s method, attention is learned for all scales simultaneously. We refer to this as the explicit approach, shown in Figure 3.

*Figure 3. The explicit approach of Chen, et al. learns a dense attention mask for a fixed set of scales to combine them to form a final semantic prediction.fusion.*

Motivated by Chen’s approach, we proposed a multi-scale attention model that also learns to predict a dense mask to combine multi-scale predictions together. However, in this method, we learn a relative attention mask to attend between one scale and the next higher scale, as shown in Figure 4. We refer to this as the hierarchical approach.

Figure 4. Our hierarchical multi-scale attention method. Top: During training, our model learns to predict attention between two adjacent scale pairs. Bottom: Inference is done in a chained/hierarchical manner in order to combine multiple scales of predictions together. Lower scale attention determines the contribution of the next higher scale.

The primary benefits to this approach are as follows:

The theoretical training cost is reduced over Chen’s method by ~4x.
While training happens with only pairs of scales, inference is flexible and can be done with any number of scales.

	Train scales	Eval scales	Mapillary val IOU	Training Cost	Minibatch time (sec)
Baseline single scale	1.0	1.0	47.7	1.00x	0.8
Baseline avgpool	1.0	0.5,1.0,2.0	49.4	1.00x	0.8
Explicit	0.5,1.0,2.0	0.5,1.0,2.0	51.4	5.25x	3.1
Hierarchical (Ours)	0.5,1.0	0.5,1.0,2.0	51.6	1.25x	1.2
Hierarchical (Ours)	0.5,1.0	0.25,0.5,1.0,2.0	52.2	1.25x	1.2

Table 3. Comparison of the hierarchical multi-scale attention method vs. other approaches on the Mapillary validation set. The network architecture is DeepLab V3+ with a ResNet-50 trunk. Eval scales: scales used for multi-scale evaluation. FLOPS: the relative amount of flops consumed by the network for training. This method achieves the best validation score, but with only a moderate cost as compared to the explicit approach.

Some examples of our method, along with the learned attention mask, are shown in Figure 5. For the fine posts in the image on the left, there is little attention to the 0.5x prediction, but a very strong attention to the 2.0x scale prediction. Conversely, for the very large road/divider region in the image on the right, the attention mechanism learns to most leverage the lower scale (0.5x) and much less of the erroneous 2.0x prediction.

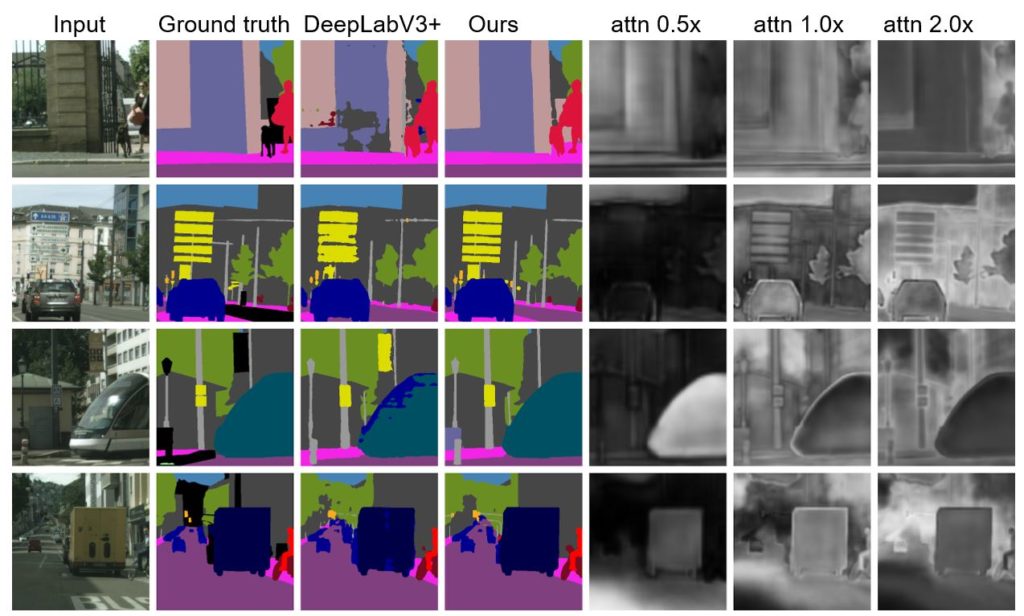

Figure 5. Semantic and attention predictions at every scale level for two different scenes. The scene on the left illustrates a fine detail problem while the scene on the right illustrates a large region segmentation problem. A white color for attention indicates a high value (close to 1.0). The attention values for a given pixel across all scales sums to 1.0. Left: The thin road-side posts are best resolved at 2x scale, and the attention successfully attends more to that scale than other scales, as evidenced by the white color for the posts in the 2x attention image. Right: The large road/divider region is best predicted at 0.5x scale, and the attention does successfully focus most heavily on the 0.5x scale for that region.

Auto-labelling

A common approach to improving semantic segmentation results with Cityscapes is to leverage the large set of coarse data. This data is roughly 7x as large as the baseline fine data. Previous SOTA approaches to Cityscapes used coarse labels as-is and either use the coarse data for pretraining the network or mix it in with the fine data.

However, the coarse labels present a challenge because they are noisy and imprecise. The ground truth coarse labels are shown in Figure 6 as ‘Original coarse label’.

Figure 6. Example of our auto-generated coarse image labels. Auto-generated coarse labels (right) provide finer detail of labeling than the original ground truth coarse labels (middle). This finer labeling improves the distribution of the labels since both small and large items are now represented, as opposed to primarily large items.

Inspired by recent work, we pursued auto-labelling as a means to generate much richer labels to fill in the labelling gaps in the ground truth coarse labels. Our generated auto-labels show much finer detail than the baseline coarse labels as seen in Figure 6. We believe that this helps generalization by filling in the gaps in the data distribution for long-tail classes.

A naive approach to using auto-labelling, such as using the multi-class probabilities from a teacher network to guide the student, would be very costly in disk space. Generating labels for the 20,000 coarse images, which are all 1920×1080 in resolution across 19 classes would cost roughly 2 TB of storage. The biggest impact of such a large footprint would be reduced training performance.

We used a hard thresholding approach instead of a soft one to vastly reduce the generated label footprint from 2 TB to 600 MB. In this approach, teacher predictions with probability > 0.5 are valid, and predictions with lower probability are treated as an ‘ignore’ class. Table 4 shows the benefit of adding the coarse data to the fine data and training a new student with the fused dataset.

Dataset	Cityscales Val IOU	Benefit
Fine + ground truth coarse labels	85.4	–
Fine + auto-generated coarse labels	86.3	0.9

Table 4. The baseline method shown here uses HRNet-OCR as the trunk and our multi-scale attention method. We compare two regimes: training with ground truth fine + ground truth coarse labels to ground truth fine + auto-coarse labels (our method). The regime including the auto-coarse labels improves on the baseline by 0.9 IOU.
