Detailed Description

This is the output structure for INvSIPLCamera::SetPipelineCfg().

It contains the queues used by the client to receive completed frames and event notifications.

Definition at line 562 of file NvSIPLPipelineMgr.hpp.

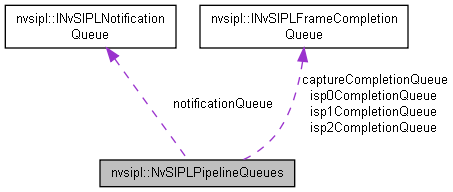

Collaboration diagram for nvsipl::NvSIPLPipelineQueues:

Data Fields
INvSIPLFrameCompletionQueue *	captureCompletionQueue {nullptr}
	The queue for completed capture frames. More...

INvSIPLFrameCompletionQueue *	isp0CompletionQueue {nullptr}
	The queue for completed frames from the first ISP output. More...

INvSIPLFrameCompletionQueue *	isp1CompletionQueue {nullptr}
	The queue for completed frames from the second ISP output. More...

INvSIPLFrameCompletionQueue *	isp2CompletionQueue {nullptr}
	The queue for completed frames from the third ISP output. More...

INvSIPLNotificationQueue *	notificationQueue {nullptr}
	The queue for event notifications. More...

Field Documentation

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::captureCompletionQueue {nullptr}

The queue for completed capture frames.

Will be null if capture output was not requested.

Definition at line 568 of file NvSIPLPipelineMgr.hpp.

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::isp0CompletionQueue {nullptr}

The queue for completed frames from the first ISP output.

Will be null if the first ISP output was not requested.

Definition at line 574 of file NvSIPLPipelineMgr.hpp.

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::isp1CompletionQueue {nullptr}

The queue for completed frames from the second ISP output.

Will be null if the second ISP output was not requested.

Definition at line 580 of file NvSIPLPipelineMgr.hpp.

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::isp2CompletionQueue {nullptr}

The queue for completed frames from the third ISP output.

Will be null if the third ISP output was not requested.

Definition at line 586 of file NvSIPLPipelineMgr.hpp.

INvSIPLNotificationQueue* nvsipl::NvSIPLPipelineQueues::notificationQueue {nullptr}

The queue for event notifications.

Definition at line 589 of file NvSIPLPipelineMgr.hpp.

The documentation for this struct was generated from the following file:
