nvsipl::NvSiplISPHistogramStatsOverride Struct Reference

Detailed Description

SIPL ISP Histogram Statistics Override Params.

Definition at line 555 of file NvSIPLISPStat.hpp.

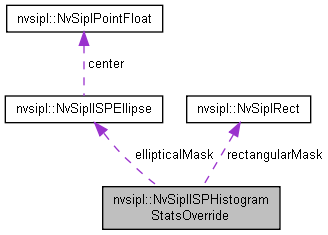

Collaboration diagram for nvsipl::NvSiplISPHistogramStatsOverride:

Data Fields
NvSiplBool	enable
	Holds a Boolean to enable histogram statistics Control block. More...
float_t	offset
	Holds offset to be applied to input data prior to bin mapping. More...
uint8_t	knees [NVSIPL_ISP_HIST_KNEE_POINTS]
	Holds bin index specifying different zones in the histogram. More...
uint8_t	ranges [NVSIPL_ISP_HIST_KNEE_POINTS]
	Holds $log_2$ range of the pixel values to be considered for each zone. More...
NvSiplRect	rectangularMask
	Holds a rectangular mask for excluding pixels outside a specified area. More...
NvSiplBool	ellipticalMaskEnable
	Holds a Boolean to enable an elliptical mask for excluding pixels outside a specified area. More...
NvSiplISPEllipse	ellipticalMask
	Holds an elliptical mask for excluding pixels outside a specified area. More...
NvSiplBool	disableLensShadingCorrection
	boolean flag to disable lens shading compensation for histogram statistics block More...

Field Documentation

disableLensShadingCorrection

NvSiplBool nvsipl::NvSiplISPHistogramStatsOverride::disableLensShadingCorrection

boolean flag to disable lens shading compensation for histogram statistics block

Definition at line 608 of file NvSIPLISPStat.hpp.

ellipticalMask

NvSiplISPEllipse nvsipl::NvSiplISPHistogramStatsOverride::ellipticalMask

Holds an elliptical mask for excluding pixels outside a specified area.

Coordinates of the image top left and bottom right points are (0, 0) and (width, height), respectively.

Definition at line 604 of file NvSIPLISPStat.hpp.

ellipticalMaskEnable

NvSiplBool nvsipl::NvSiplISPHistogramStatsOverride::ellipticalMaskEnable

Holds a Boolean to enable an elliptical mask for excluding pixels outside a specified area.

Definition at line 597 of file NvSIPLISPStat.hpp.

enable

NvSiplBool nvsipl::NvSiplISPHistogramStatsOverride::enable

Holds a Boolean to enable histogram statistics Control block.

Definition at line 559 of file NvSIPLISPStat.hpp.

knees

uint8_t nvsipl::NvSiplISPHistogramStatsOverride::knees[NVSIPL_ISP_HIST_KNEE_POINTS]

Holds bin index specifying different zones in the histogram.

Each zone can have a different number of bins. Valid Range: [1, 255]

Definition at line 570 of file NvSIPLISPStat.hpp.

offset

float_t nvsipl::NvSiplISPHistogramStatsOverride::offset

Holds offset to be applied to input data prior to bin mapping.

Valid Range: [-2.0, 2.0]

Definition at line 564 of file NvSIPLISPStat.hpp.

ranges

uint8_t nvsipl::NvSiplISPHistogramStatsOverride::ranges[NVSIPL_ISP_HIST_KNEE_POINTS]

Holds $log_2$ range of the pixel values to be considered for each zone.

The whole pixel range is divided into NVSIPL_ISP_HIST_KNEE_POINTS zones. Valid Range: [0, 21]

Definition at line 577 of file NvSIPLISPStat.hpp.

rectangularMask

NvSiplRect nvsipl::NvSiplISPHistogramStatsOverride::rectangularMask

Holds a rectangular mask for excluding pixels outside a specified area.

The coordinates of image top left and bottom right points are (0, 0) and (width, height), respectively. Set the rectangle mask to include the full image (or cropped image for the case input cropping is enabled) if no pixels need to be excluded.

The rectangle settings(x0, y0, x1, y1) must follow the constraints listed below:

• (x0 >= 0) and (y0 >= 0)
• x0 and x1 should be even
• (x1 <= image width) and (y1 <= image height)
• rectangle width(x1 - x0) >= 2 and height(y1 - y0) >= 2

Definition at line 592 of file NvSIPLISPStat.hpp.

---

The documentation for this struct was generated from the following file:

• NvSIPLISPStat.hpp
