Detailed Description

This is the output structure for SetPipelineCfg().

It contains the queues used by the client to receive completed frames and event notifications.

Definition at line 460 of file NvSIPLPipelineMgr.hpp.

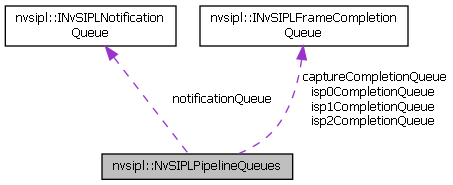

Collaboration diagram for nvsipl::NvSIPLPipelineQueues:

Data Fields
INvSIPLFrameCompletionQueue *	captureCompletionQueue {nullptr}
	The queue for completed capture frames. More...

INvSIPLFrameCompletionQueue *	isp0CompletionQueue {nullptr}
	The queue for completed frames from the first ISP output. More...

INvSIPLFrameCompletionQueue *	isp1CompletionQueue {nullptr}
	The queue for completed frames from the second ISP output. More...

INvSIPLFrameCompletionQueue *	isp2CompletionQueue {nullptr}
	The queue for completed frames from the third ISP output. More...

INvSIPLNotificationQueue *	notificationQueue {nullptr}
	The queue for event notifications. More...

Field Documentation

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::captureCompletionQueue {nullptr}

The queue for completed capture frames.

Will be null if capture output was not requested.

Definition at line 466 of file NvSIPLPipelineMgr.hpp.

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::isp0CompletionQueue {nullptr}

The queue for completed frames from the first ISP output.

Will be null if the first ISP output was not requested.

Definition at line 472 of file NvSIPLPipelineMgr.hpp.

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::isp1CompletionQueue {nullptr}

The queue for completed frames from the second ISP output.

Will be null if the second ISP output was not requested.

Definition at line 478 of file NvSIPLPipelineMgr.hpp.

INvSIPLFrameCompletionQueue* nvsipl::NvSIPLPipelineQueues::isp2CompletionQueue {nullptr}

The queue for completed frames from the third ISP output.

Will be null if the third ISP output was not requested.

Definition at line 484 of file NvSIPLPipelineMgr.hpp.

INvSIPLNotificationQueue* nvsipl::NvSIPLPipelineQueues::notificationQueue {nullptr}

The queue for event notifications.

Definition at line 487 of file NvSIPLPipelineMgr.hpp.

The documentation for this struct was generated from the following file:
