Detailed Description

Structure containing ISP stats settings.

Definition at line 218 of file NvSIPLControlAutoDef.hpp.

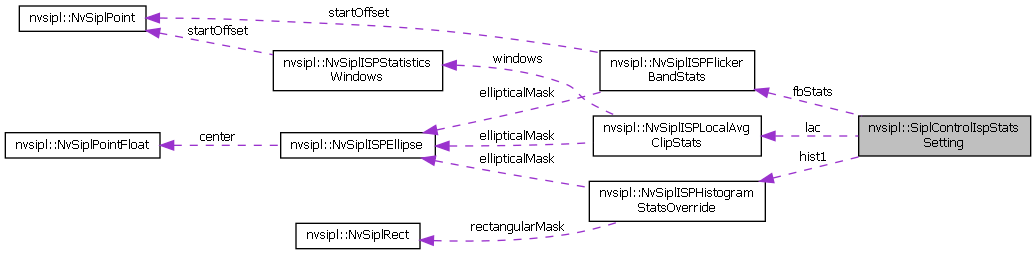

Collaboration diagram for nvsipl::SiplControlIspStatsSetting:

[legend]

Data Fields
bool	valid
	Boolean flag to control whether ISP stats blocks are valid or not. More...

NvSiplISPLocalAvgClipStats	lac [2]
	Settings for 2 LAC stats ISP blocks, defined in NvSIPLISPStat.hpp. More...

NvSiplISPHistogramStatsOverride	hist1
	Settings for Histogram 1 stats override block, defined in NvSIPLISPStat.hpp. More...

NvSiplISPFlickerBandStats	fbStats
	Settings for Flicker Band stats block, defined in NvSIPLISPStat.hpp. More...

Field Documentation

NvSiplISPFlickerBandStats nvsipl::SiplControlIspStatsSetting::fbStats

Settings for Flicker Band stats block, defined in NvSIPLISPStat.hpp.

This variable is not supported in SIPL Control Auto.

Definition at line 238 of file NvSIPLControlAutoDef.hpp.

NvSiplISPHistogramStatsOverride nvsipl::SiplControlIspStatsSetting::hist1

Settings for Histogram 1 stats override block, defined in NvSIPLISPStat.hpp.

Definition at line 232 of file NvSIPLControlAutoDef.hpp.

NvSiplISPLocalAvgClipStats nvsipl::SiplControlIspStatsSetting::lac[2]

Settings for 2 LAC stats ISP blocks, defined in NvSIPLISPStat.hpp.

Definition at line 227 of file NvSIPLControlAutoDef.hpp.

bool nvsipl::SiplControlIspStatsSetting::valid

Boolean flag to control whether ISP stats blocks are valid or not.

Definition at line 222 of file NvSIPLControlAutoDef.hpp.

The documentation for this struct was generated from the following file:
