Description

The NVIDIA^® DriveWorks Rig Viewer Tool displays the rig configuration file passed as an input parameter in 3D.
It visualizes the ego-car and its sensors as oriented boxes based on information specified in the rig configuration file.
As an option, it can also visualize the coverage of Lidar-sensors on the ground plane around the vehicle.

Prerequisites

This tool is available on the x86 Host System and NVIDIA DRIVE^™ OS Linux.

This tool creates output files that are placed into the current working directory by default. Please ensure the following for your convenience:

Write permissions are enabled for the current working directory.
Include the tools folder in the binary search path of the system.
Execute from your home directory.

Running the Tool

Run this tool by executing:

./rig_viewer --rig=[input file]
             [--offscreen=[0|1|2]]
             [--profiling=[0|1]]

Parameters

--rig=[path to input file]
        Description: The rig file containing all the sensor configurations required for the tool.
                     If there is no rig file present, the tool will not launch.
        Example: --rig=wwdc_rig.json
        Default value: ../../data/tools/rig_viewer/wwdc_rig.json

--offscreen=[0|1|2]
        Description: Used to run windowed apps in headless mode:
                     '0' = Display window.
                     '1' = Offscreen window.
                     '2' = No window created.
        Default value: 0

--profiling=[0|1]
        Description: Enables or disables sample profiling.
                     '0' = Disables sample profiling.
                     '1' = Enables sample profiling.
        Default Value: 1

Example

Launching in Offscreen Window while Sample Profiling is Enabled

./rig_viewer --rig=../../data/tools/rig_viewer/wwdc_rig.json
             --offscreen=0
             --profiling=1

Output

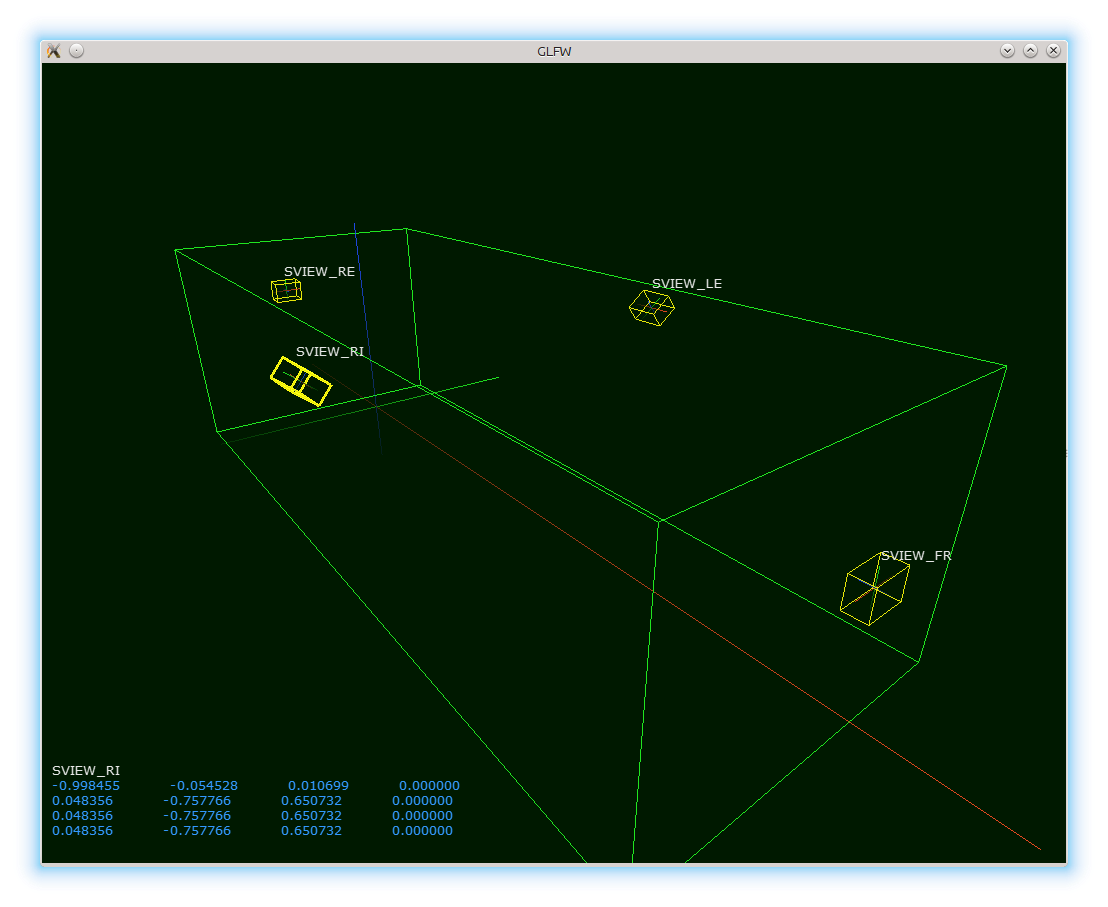

The Rig Viewer Tool displays a window where the ego-vehicle is represented by a green bounding box, and each sensor is represented by yellow bounding boxes.
Clicking on each sensor allows you to view additional information on the bottom left of the screen. You can also click and drag the cursor around the screen to manipulate the view.

Basic View
