Description

The VehicleIO sample demonstrates how to read and write the state of the vehicle actuators (i.e. throttle, brake, steering, etc.) It can talk to different vehicle control systems, one of which is Dataspeed. The VehicleIO module abstracts the underlying physical protocols and connections. The internal "driver layer" handles the protocol interface and the VehicleIO module handles the state.

The VehicleIO sample has been tested with CAN-based Dataspeed vehicle control system and validated with Ford MKZ and Ford Fusion vehicles. To send the steering, brake or throttle commands, use a keyboard or a USB joystick (tested with Logitech Gamepad F310).

The VehicleIO sample can run with the Dataspeed drive-by-wire (DbW) systems. It can also run with a generic NVIDIA DbW driver. The AutonomousVehicleCANSignals.dbc DBC file describes the CAN commands for that driver.

If you run the vehicleIO sample with the generic driver, you must also run the DataspeedBridge utility. That utility converts the CAN messages and commands to/from DbW systems to a generic type.

Running the Sample

The command line for the sample is:

./sample_vehicleio  --help
                    --allow-no-safety: default=no
                        Allow issuing actuation commands without software limiters. To allow, set to 'yes'.
                    --interval: default=10
                        Time interval between VIO in msec. The default is 10msec
                    --offscreen: default=0
                        Used for running windowed apps in headless mode. 0 = show window, 1 = offscreen window, 2 = no window created
                    --profiling: default=1
                        Enables/disables sample profiling
                    --rig: default=/usr/local/driveworks-5.12/data/samples/vehicleio/rig.json

where

--rig=[path/to/rig/file]
    Points to the rig file.
    Default value: path/to/data/samples/samples/vehicleio/rig.json

--allow-no-safety=[no|yes]
    Set to 'yes' to allow issuing actuation commands without
    software-imposed limits.
    Default value: no

--interval=[time-in-msec]
    Time interval between VIO messages in msec.
    Default value: 10msec

--offscreen=[0|1|2]
        Used to run windowed apps in headless mode:
        0: Displays window.
        1: Displays offscreen window.
        2: No window created.
        Default value: 0

--profiling=[0|1]
    When set to 1, enables sample profiling.
    Otherwise, profiling is disabled.
    Default value: 1

While the sample is running, the following commands are available:

E - enable the vehicle control system
D - disable the vehicle control system
Arrow key UP - incrementel throttle with every arrow key UP press
Arrow key DOWN - incremental braking with every arrow key DOWN press
Arrow key LEFT - incremental steering rotation (counter-clockwise) with every key press
Arrow key RIGHT - incremental steering rotation (clockwise) with every key press

Note: The vehicle control system is only available when using real CAN or linux VCAN.

Examples

Run VehicleIO sample with the Dataspeed driver

To use with the pre-recorded CAN data, which is provided with the sample, run the sample without any arguments:

./sample_vehicleio

To use a custom pre-recorded CAN data or to run live, one should provide a custom rig file and use --rig argument:

./sample_vehicleio --rig=rig.json

One can use the provided (default) rig.json file as a template (exact location of that file can be found using ./sample_vehicleio --help.)

Run VehicleIO sample with the generic DbW Driver

Before you can run the sample with a generic driver, you must run the utility DataspeedBridge. This sample converts the messages from Dataspeed to a generic type and vice-versa.

You can use the CAN0 interface in a vehicle equipped with the Dataspeed DbW system. With that setup, you can use the generic vehicleIO driver directly in a CAR, where the Dataspeed system is connected to CAN0.

The following steps assume your DbW system is connected to CAN0.

After running the dataspeedBridge, run the vehicleio sample with a Rig Configuration that has only generic VehicleIO node:

{
    "rig": {
        "vehicleio": [
            {
                "type": "generic",
                "parent-sensor": "can:vehicle:generic",
                "dbc-file": "AutonomousVehicleCANSignals.dbc"
            }
        ],
        "sensors": [
            {
                "name": "can:vehicle:generic",
                "parameter": "device=can0",
                "protocol": "can.socket",
                "properties": null,
                "nominalSensor2Rig": { "quaternion": [ 0.0, 0.0, 0.0, 1.0 ], "t": [ 0.0, 0.0, 0.0 ] },
                "sensor2Rig": { "quaternion": [ 0.0, 0.0, 0.0, 1.0 ], "t": [ 0.0, 0.0, 0.0 ] }
            }
        ],
...
}

Then run the sample with this new rig.json file:

./sample_vehicleio --rig=rig.json

Using Generic VehicleIO via VCAN0 interface on Bench

If you want to use the generic vehicleio driver in a bench setup, you can use the VCAN interface.

Enable the VCAN interface.

sudo modprobe vcan
sudo ip link add dev vcan0 type vcan
sudo ip link set up vcan0

Start transmitting Dataspeed can messages over the VCAN interface.

while true; do cat candump_dataspeed.log | canplayer -l i vcan0=can0; done

Run sample_dataspeedBridge to convert Dataspeed messages to generic vehicleio messages (refer to Dataspeed Bridge Sample for details).
Prepare a rig file that has vcan0 sensor and Generic VehicleIO node (as described above), then run the sample:
```
./sample_vehicleio --rig=rig.json
```

Output

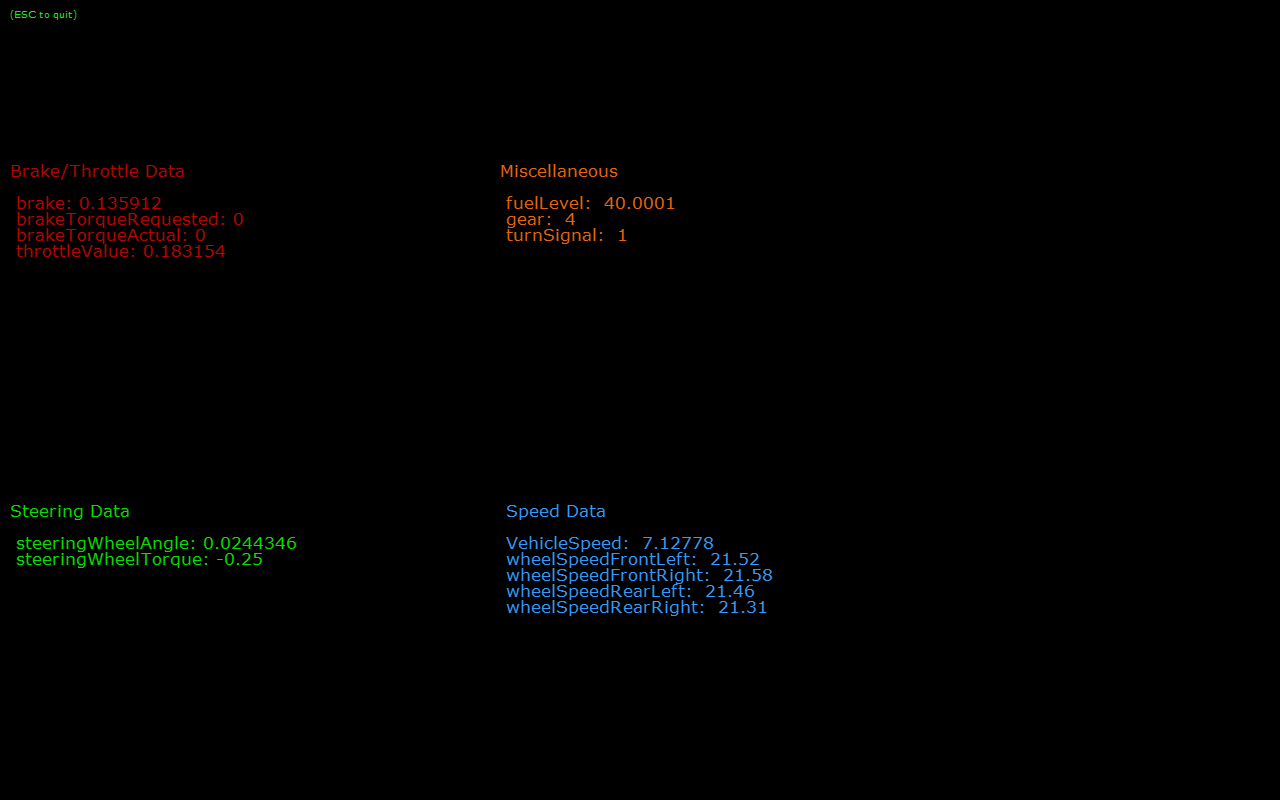

The sample opens a window to display the various vehicle control parameters, such as throttle, braking, and steering. Once the window is in the focus, the throttle, brakes, steering of the vehicle can be controlled via a keyboard or a USB joystick, as described above.

The sample prints the basic vehicle state information to the terminal.

VehicleIO sample

Additional information

For more information, see VehicleIO .
