Detailed Description

Structure containing ISP Stats information.

Definition at line 159 of file NvSIPLControlAutoDef.hpp.

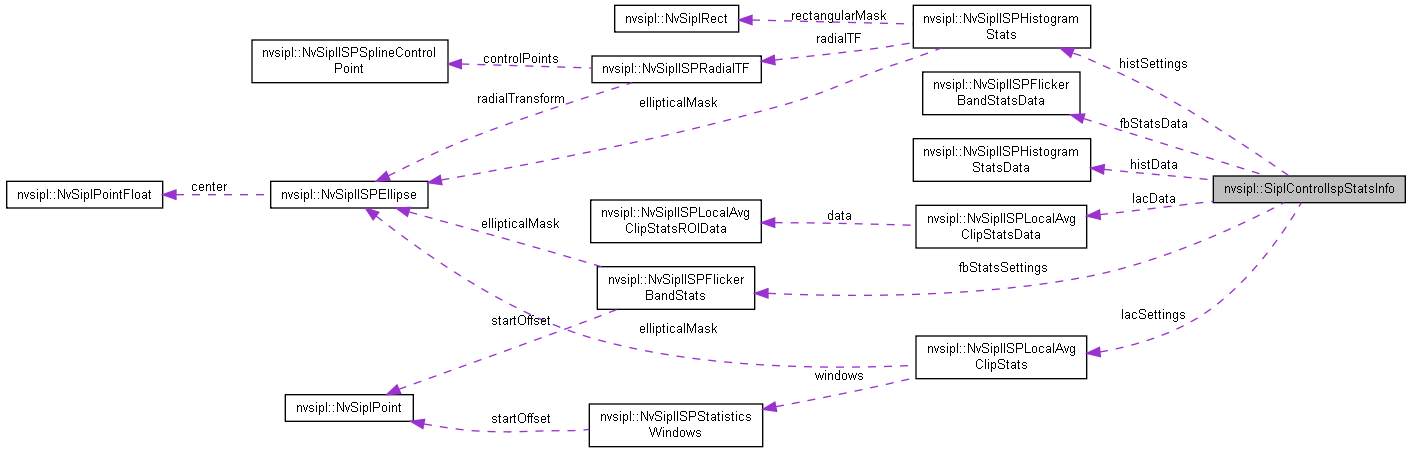

Collaboration diagram for nvsipl::SiplControlIspStatsInfo:

[legend]

Data Fields
const NvSiplISPLocalAvgClipStatsData *	lacData [2]
	Holds pointers to 2 LAC stats data. More...

const NvSiplISPLocalAvgClipStats *	lacSettings [2]
	Holds pointers to 2 LAC stats settings. More...

const NvSiplISPHistogramStatsData *	histData [2]
	Holds pointers to 2 Histogram stats data. More...

const NvSiplISPHistogramStats *	histSettings [2]
	Holds pointers to 2 Histogram stats settings. More...

const NvSiplISPFlickerBandStatsData *	fbStatsData
	Holds pointer to Flicker Band stats data. More...

const NvSiplISPFlickerBandStats *	fbStatsSettings
	Holds pointer to Flicker Band stats settings. More...

Field Documentation

const NvSiplISPFlickerBandStatsData* nvsipl::SiplControlIspStatsInfo::fbStatsData

Holds pointer to Flicker Band stats data.

This variable is not supported in SIPL Control Auto.

Definition at line 180 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPFlickerBandStats* nvsipl::SiplControlIspStatsInfo::fbStatsSettings

Holds pointer to Flicker Band stats settings.

This variable is not supported in SIPL Control Auto.

Definition at line 185 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPHistogramStatsData* nvsipl::SiplControlIspStatsInfo::histData[2]

Holds pointers to 2 Histogram stats data.

Definition at line 171 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPHistogramStats* nvsipl::SiplControlIspStatsInfo::histSettings[2]

Holds pointers to 2 Histogram stats settings.

Definition at line 175 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPLocalAvgClipStatsData* nvsipl::SiplControlIspStatsInfo::lacData[2]

Holds pointers to 2 LAC stats data.

Definition at line 163 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPLocalAvgClipStats* nvsipl::SiplControlIspStatsInfo::lacSettings[2]

Holds pointers to 2 LAC stats settings.

Definition at line 167 of file NvSIPLControlAutoDef.hpp.

The documentation for this struct was generated from the following file:
