Microboot 1 and PSC-BL1

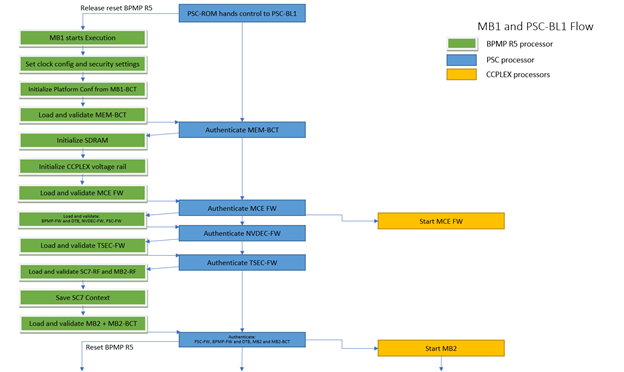

After the BootROM has completed execution, PSC-ROM/PSC-BL1 releases reset on the BPMP R5 to start Microboot1 (MB1) in the boot flow process as follows:

media/image4.png

MB1 extends BootROM to provide the same security level in conjunction with PSC-BL1. During MB1 sequence, these tasks are executed:

  • Set clock and security settings
  • Initialize the platform configuration settings from MB1_BCT
  • Initialize the SDRAM based on the MB1 boot configuration table, MB1_BCT, and MEM_BCT.
  • Initialize the CCPLEX including MCE FW
  • Load/authenticate the NVDEC, BPMP-FW, PSC-FW and TSEC firmwares
  • Load the SC7 firmwares and prepare SC7 context
  • Load/authenticate

MB1_BCT is NOT customer configurable.
