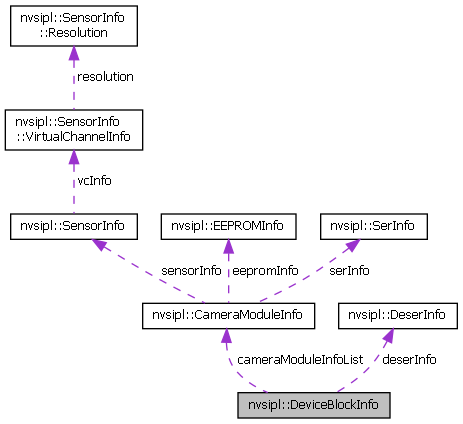

Defines the DeviceBlock information.
A DeviceBlock represents a grouping of a deserializer (which is connected to the SoC's CSI interface) and the camera modules connected to the links of the deserializer.
Definition at line 295 of file NvSIPLDeviceBlockInfo.hpp.
Data Fields | |
| NvSiplCapInterfaceType | csiPort {NVSIPL_CAP_CSI_INTERFACE_TYPE_CSI_A} |
| Holds the NvSiplCapInterfaceType that specifies the CSI port of the SoC to which the deserializer is connected. More... | |
| NvSiplCapCsiPhyMode | phyMode = NVSIPL_CAP_CSI_DPHY_MODE |
| Holds the NvSiplCapCsiPhyMode Phy mode. More... | |
| uint32_t | i2cDevice {UINT32_MAX} |
| Holds the I2C device bus number used to connect the deserializer with the SoC. More... | |
| DeserInfo | deserInfo |
| Holds the DeserInfo deserializer information. More... | |
| uint32_t | numCameraModules {0U} |
| Holds the number of camera modules connected to the deserializer. More... | |
| CameraModuleInfo | cameraModuleInfoList [MAX_CAMERAMODULES_PER_BLOCK] |
| Holds an array of information about each camera module in the device block. More... | |
| std::uint32_t | desI2CPort {UINT32_MAX} |
| Holds the deserializer I2C port number connected with the SoC. More... | |
| std::uint32_t | desTxPort {UINT32_MAX} |
| Holds the deserializer Tx port number connected with the SoC. More... | |
| std::uint32_t | pwrPort = UINT32_MAX |
| Holds the power port. More... | |
| std::uint32_t | dphyRate [MAX_CSI_LANE_CONFIGURATION] = {0U} |
| Holds the deserializer's data rate in DPHY mode(kHz) More... | |
| std::uint32_t | cphyRate [MAX_CSI_LANE_CONFIGURATION] = {0U} |
| Holds the deserializer's data rate in CPHY mode(ksps) More... | |
| bool | isSimulatorModeEnabled {false} |
| Holds a flag which indicates whether simulator mode has been enabled. More... | |
| bool | isPassiveModeEnabled {false} |
| Holds a flag which indicates whether passive mode must be enabled. More... | |
| bool | isGroupInitProg {false} |
| Holds a flag which indicates whether group initialization is enabled. More... | |
| std::vector< uint32_t > | gpios |
| Holds CDAC GPIO indices for the Device Block. More... | |
| bool | isPwrCtrlDisabled {false} |
| Holds a flag which indicates whether power control is disabled on the platform. More... | |
| bool | longCables [MAX_CAMERAMODULES_PER_BLOCK] = {false, false, false, false} |
| Holds long cable support. More... | |
| bool | resetAll |
| CameraModuleInfo nvsipl::DeviceBlockInfo::cameraModuleInfoList[MAX_CAMERAMODULES_PER_BLOCK] |
Holds an array of information about each camera module in the device block.
Definition at line 313 of file NvSIPLDeviceBlockInfo.hpp.
| std::uint32_t nvsipl::DeviceBlockInfo::cphyRate[MAX_CSI_LANE_CONFIGURATION] = {0U} |
Holds the deserializer's data rate in CPHY mode(ksps)
Definition at line 323 of file NvSIPLDeviceBlockInfo.hpp.
| NvSiplCapInterfaceType nvsipl::DeviceBlockInfo::csiPort {NVSIPL_CAP_CSI_INTERFACE_TYPE_CSI_A} |
Holds the NvSiplCapInterfaceType that specifies the CSI port of the SoC to which the deserializer is connected.
Definition at line 299 of file NvSIPLDeviceBlockInfo.hpp.
| DeserInfo nvsipl::DeviceBlockInfo::deserInfo |
Holds the DeserInfo deserializer information.
Definition at line 306 of file NvSIPLDeviceBlockInfo.hpp.
| std::uint32_t nvsipl::DeviceBlockInfo::desI2CPort {UINT32_MAX} |
Holds the deserializer I2C port number connected with the SoC.
Definition at line 315 of file NvSIPLDeviceBlockInfo.hpp.
| std::uint32_t nvsipl::DeviceBlockInfo::desTxPort {UINT32_MAX} |
Holds the deserializer Tx port number connected with the SoC.
Definition at line 317 of file NvSIPLDeviceBlockInfo.hpp.
| std::uint32_t nvsipl::DeviceBlockInfo::dphyRate[MAX_CSI_LANE_CONFIGURATION] = {0U} |
Holds the deserializer's data rate in DPHY mode(kHz)
Definition at line 321 of file NvSIPLDeviceBlockInfo.hpp.
| std::vector<uint32_t> nvsipl::DeviceBlockInfo::gpios |
Holds CDAC GPIO indices for the Device Block.
(Non-error monitoring.)
Definition at line 335 of file NvSIPLDeviceBlockInfo.hpp.
| uint32_t nvsipl::DeviceBlockInfo::i2cDevice {UINT32_MAX} |
Holds the I2C device bus number used to connect the deserializer with the SoC.
Definition at line 304 of file NvSIPLDeviceBlockInfo.hpp.
| bool nvsipl::DeviceBlockInfo::isGroupInitProg {false} |
Holds a flag which indicates whether group initialization is enabled.
Definition at line 333 of file NvSIPLDeviceBlockInfo.hpp.
| bool nvsipl::DeviceBlockInfo::isPassiveModeEnabled {false} |
Holds a flag which indicates whether passive mode must be enabled.
Used when an NVIDIA DRIVE™ AGX SoC connected to the deserializer does not have an I2C connection to control it.
Definition at line 331 of file NvSIPLDeviceBlockInfo.hpp.
| bool nvsipl::DeviceBlockInfo::isPwrCtrlDisabled {false} |
Holds a flag which indicates whether power control is disabled on the platform.
Definition at line 339 of file NvSIPLDeviceBlockInfo.hpp.
| bool nvsipl::DeviceBlockInfo::isSimulatorModeEnabled {false} |
Holds a flag which indicates whether simulator mode has been enabled.
Used for the ISP reprocessing use case to simulate the presence of a device block.
Definition at line 327 of file NvSIPLDeviceBlockInfo.hpp.
| bool nvsipl::DeviceBlockInfo::longCables[MAX_CAMERAMODULES_PER_BLOCK] = {false, false, false, false} |
Holds long cable support.
Definition at line 341 of file NvSIPLDeviceBlockInfo.hpp.
| uint32_t nvsipl::DeviceBlockInfo::numCameraModules {0U} |
Holds the number of camera modules connected to the deserializer.
This value must be less than or equal to MAX_CAMERAMODULES_PER_BLOCK.
Definition at line 310 of file NvSIPLDeviceBlockInfo.hpp.
| NvSiplCapCsiPhyMode nvsipl::DeviceBlockInfo::phyMode = NVSIPL_CAP_CSI_DPHY_MODE |
Holds the NvSiplCapCsiPhyMode Phy mode.
Definition at line 301 of file NvSIPLDeviceBlockInfo.hpp.
| std::uint32_t nvsipl::DeviceBlockInfo::pwrPort = UINT32_MAX |
Holds the power port.
Definition at line 319 of file NvSIPLDeviceBlockInfo.hpp.
| bool nvsipl::DeviceBlockInfo::resetAll |
Definition at line 344 of file NvSIPLDeviceBlockInfo.hpp.
