Detailed Description

template<typename T>
class dw::framework::PortOutput< T >

PortOutput mimics an Output Block. It wrapps over a Producer Channel. Provides services like

binding(allocating channel resources, out of current scope),
getting next free element
sending data

Definition at line 78 of file Port.hpp.

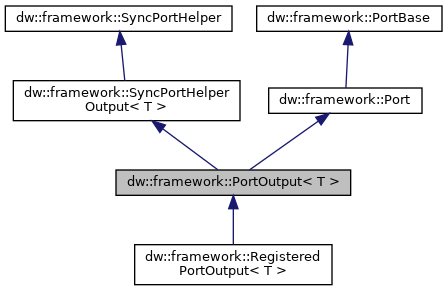

Inheritance diagram for dw::framework::PortOutput< T >:

[legend]

Collaboration diagram for dw::framework::PortOutput< T >:

[legend]

Public Types
using	ApiDataTypeT = T

using	BaseSyncHelper = SyncPortHelperOutput< T >

using	SpecimenT = typename parameter_traits< T >::SpecimenT

Public Member Functions
dwStatus	bindChannel (ChannelObject *channel) override

dwStatus	bindChannelWithReference (ChannelObject *channel, GenericDataReference &ref)

T *	getFreeElement ()

ChannelObject::SyncSignaler &	getSyncSignaler ()

ChannelObject::SyncWaiter &	getSyncWaiter ()

void	getWaitFences (T *frame, dw::core::span< NvSciSyncFence > fences)

bool	isBound () final

	PortOutput (SpecimenT &&ref)

	PortOutput (SpecimenT const &ref)

	PortOutput (SpecimenT const &ref, OnSetSyncAttrs signalerAttrs, OnSetSyncAttrs waiterAttrs={})

virtual dwStatus	send (T *frame)

void	setOnDataReady (void *opaque, ChannelObject::PacketPool::OnDataReady onDataReady)

void	setSignalFences (T *frame, dw::core::span< NvSciSyncFence > fences)

dwStatus	wait (dwTime_t timeout)

Public Member Functions inherited from dw::framework::SyncPortHelperOutput< T >
	SyncPortHelperOutput ()

Public Member Functions inherited from dw::framework::SyncPortHelper
bool	isDataSynced ()

virtual void	parseDataSynced (const ChannelParams &params)

void	setSyncCount (uint32_t index)

dwStatus	setSyncRetriever (const CycleCountFetcher &func)

	SyncPortHelper ()

Public Member Functions inherited from dw::framework::Port
virtual dwStatus	bindChannel (ChannelObject *channel)=0

virtual dwStatus	initialize ()

virtual bool	isBound ()=0

Public Member Functions inherited from dw::framework::PortBase
virtual	~PortBase ()=default

Static Public Attributes
static constexpr PortDirection	DIRECTION = PortDirection::OUTPUT

static constexpr char	LOG_TAG [] = "PortOutput"

Additional Inherited Members
Protected Member Functions inherited from dw::framework::SyncPortHelperOutput< T >
T *	extractInternalPacket (GenericData genericData)

SyncedPacketPayload *	getSyncPacket (T *frame)

void	parseDataSynced (const ChannelParams &params) override

Protected Member Functions inherited from dw::framework::SyncPortHelper
ChannelPacketTypeID	getNewPacketID (ChannelPacketTypeID packetTypeID)

void	stampSyncCount (uint32_t &syncCountOut) const

Protected Attributes inherited from dw::framework::SyncPortHelper
uint32_t	m_dataOffset

bool	m_dataSynced

uint32_t	m_syncCount

CycleCountFetcher	m_syncCountRetriever

Member Typedef Documentation

◆ ApiDataTypeT

template<typename T >

using dw::framework::PortOutput< T >::ApiDataTypeT = T

Definition at line 82 of file Port.hpp.

◆ BaseSyncHelper

template<typename T >

using dw::framework::PortOutput< T >::BaseSyncHelper = SyncPortHelperOutput<T>

Definition at line 84 of file Port.hpp.

◆ SpecimenT

template<typename T >

using dw::framework::PortOutput< T >::SpecimenT = typename parameter_traits<T>::SpecimenT

Definition at line 83 of file Port.hpp.

Constructor & Destructor Documentation

◆ PortOutput() [1/3]

template<typename T >

dw::framework::PortOutput< T >::PortOutput ( SpecimenT const & ref )

inlineexplicit

Definition at line 97 of file Port.hpp.

◆ PortOutput() [2/3]

template<typename T >

dw::framework::PortOutput< T >::PortOutput ( SpecimenT && ref )

inlineexplicit

Definition at line 101 of file Port.hpp.

◆ PortOutput() [3/3]

template<typename T >

dw::framework::PortOutput< T >::PortOutput	(	SpecimenT const &	ref,
		OnSetSyncAttrs	signalerAttrs,
		OnSetSyncAttrs	waiterAttrs = `{}`
	)

inlineexplicit

Definition at line 106 of file Port.hpp.

Member Function Documentation

◆ bindChannel()

template<typename T >

dwStatus dw::framework::PortOutput< T >::bindChannel ( ChannelObject * channel )

inlineoverridevirtual

Implements dw::framework::Port.

Definition at line 116 of file Port.hpp.

References dw::framework::PortOutput< T >::bindChannelWithReference().

◆ bindChannelWithReference()

template<typename T >

dwStatus dw::framework::PortOutput< T >::bindChannelWithReference	(	ChannelObject *	channel,
		GenericDataReference &	ref
	)

inline

Definition at line 122 of file Port.hpp.

References FRWK_LOGE, dw::framework::SyncPortHelper::getNewPacketID(), dw::framework::ChannelObject::getParams(), dw::framework::ChannelObject::getProducer(), dw::framework::Exception::guard(), dw::framework::PortOutput< T >::isBound(), dw::framework::SyncPortHelper::isDataSynced(), dw::framework::GenericDataReference::packetTypeID, dw::framework::SyncPortHelperOutput< T >::parseDataSynced(), dw::framework::GenericDataReference::setSignalerAttributes, and dw::framework::GenericDataReference::setWaiterAttributes.

Referenced by dw::framework::PortOutput< T >::bindChannel().

◆ getFreeElement()

template<typename T >

T * dw::framework::PortOutput< T >::getFreeElement ( )

inline

Definition at line 181 of file Port.hpp.

References dw::framework::SyncPortHelperOutput< T >::extractInternalPacket(), dw::framework::ChannelObject::Producer::get(), dw::framework::SyncPortHelper::isDataSynced(), and dw::framework::status.

◆ getSyncSignaler()

template<typename T >

ChannelObject::SyncSignaler & dw::framework::PortOutput< T >::getSyncSignaler ( )

inline

Definition at line 219 of file Port.hpp.

References dw::framework::ChannelObject::PacketPool::getSyncSignaler().

◆ getSyncWaiter()

template<typename T >

ChannelObject::SyncWaiter & dw::framework::PortOutput< T >::getSyncWaiter ( )

inline

Definition at line 240 of file Port.hpp.

References dw::framework::ChannelObject::PacketPool::getSyncWaiter().

◆ getWaitFences()

template<typename T >

void dw::framework::PortOutput< T >::getWaitFences	(	T *	frame,
		dw::core::span< NvSciSyncFence >	fences
	)

inline

Definition at line 249 of file Port.hpp.

References dw::framework::SyncPortHelperOutput< T >::getSyncPacket(), dw::framework::ChannelObject::PacketPool::getSyncWaiter(), dw::framework::ChannelObject::SyncWaiter::getWaitFences(), and dw::framework::SyncPortHelper::isDataSynced().

◆ isBound()

template<typename T >

bool dw::framework::PortOutput< T >::isBound ( )

inlinefinalvirtual

Implements dw::framework::Port.

Definition at line 164 of file Port.hpp.

Referenced by dw::framework::PortOutput< T >::bindChannelWithReference(), dw::framework::PortOutput< T >::setOnDataReady(), and dw::framework::PortOutput< T >::wait().

◆ send()

template<typename T >

virtual dwStatus dw::framework::PortOutput< T >::send ( T * frame )

inlinevirtual

Definition at line 204 of file Port.hpp.

References dw::framework::SyncPortHelperOutput< T >::getSyncPacket(), dw::framework::SyncPortHelper::isDataSynced(), and dw::framework::ChannelObject::Producer::send().

◆ setOnDataReady()

template<typename T >

void dw::framework::PortOutput< T >::setOnDataReady	(	void *	opaque,
		ChannelObject::PacketPool::OnDataReady	onDataReady
	)

inline

Definition at line 155 of file Port.hpp.

References dw::framework::PortOutput< T >::isBound(), and dw::framework::ChannelObject::PacketPool::setOnDataReady().

◆ setSignalFences()

template<typename T >

void dw::framework::PortOutput< T >::setSignalFences	(	T *	frame,
		dw::core::span< NvSciSyncFence >	fences
	)

inline

Definition at line 228 of file Port.hpp.

References dw::framework::SyncPortHelperOutput< T >::getSyncPacket(), dw::framework::ChannelObject::PacketPool::getSyncSignaler(), dw::framework::SyncPortHelper::isDataSynced(), and dw::framework::ChannelObject::SyncSignaler::setSignalFences().

◆ wait()

template<typename T >

dwStatus dw::framework::PortOutput< T >::wait ( dwTime_t timeout )

inline

Definition at line 169 of file Port.hpp.

References dw::framework::PortOutput< T >::isBound(), and dw::framework::ChannelObject::PacketPool::wait().

Member Data Documentation

◆ DIRECTION

template<typename T >

constexpr PortDirection dw::framework::PortOutput< T >::DIRECTION = PortDirection::OUTPUT

staticconstexpr

Definition at line 81 of file Port.hpp.

◆ LOG_TAG

template<typename T >

constexpr char dw::framework::PortOutput< T >::LOG_TAG = "PortOutput"

staticconstexpr

Definition at line 88 of file Port.hpp.

The documentation for this class was generated from the following file:

src/dwcgf/port/Port.hpp
