Detailed Description

dwRigNode receives extrinsic calibrations from sensors in the system, and maintains that state to update the vehicle's rig file on program exit.

Definition at line 90 of file dwRigNode.hpp.

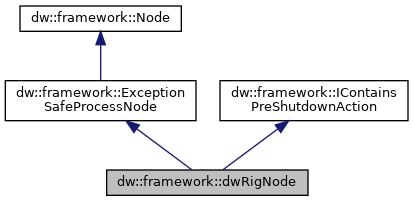

Inheritance diagram for dw::framework::dwRigNode:

[legend]

Collaboration diagram for dw::framework::dwRigNode:

[legend]

Public Member Functions
	dwRigNode (const dwRigNode &other)=default

	dwRigNode (dwRigNode &&other)=default

	dwRigNode (dwRigNodeParams const &params, dwContextHandle_t const ctx)

dwRigNode &	operator= (const dwRigNode &)=default

dwRigNode &	operator= (dwRigNode &&)=default

dwStatus	preShutdown () override

	~dwRigNode () override=default

Public Member Functions inherited from dw::framework::ExceptionSafeProcessNode
	ExceptionSafeProcessNode (std::unique_ptr< Node > impl)

dwStatus	getErrorSignal (dwGraphErrorSignal *&errorSignal) override

dwStatus	getHealthSignal (dwGraphHealthSignal *&healthSignal, bool updateFromModule=false) override

dwStatus	getName (const char **name) override

size_t	getPassCount () const noexcept override

dwStatus	getPasses (VectorFixed< Pass * > &passList) override

dwStatus	getPasses (VectorFixed< Pass * > &passList, dwProcessorType processorType, dwProcessType processType) override

dwStatus	reportCurrentErrorSignal (dwGraphErrorSignal &signal) override

dwStatus	reportCurrentHealthSignal (dwGraphHealthSignal &signal) override

dwStatus	reset () override

void	resetPorts () override

dwStatus	run () override

dwStatus	runPass (size_t passIndex) override

dwStatus	runPassByID (uint8_t passID) override

dwStatus	setInputChannel (ChannelObject *channel, uint8_t portID) override

dwStatus	setInputChannel (ChannelObject *channel, uint8_t portID, dwSerializationType dataType) override

dwStatus	setIterationCount (uint32_t iterationCount) override final

dwStatus	setName (const char *name) override

dwStatus	setOutputChannel (ChannelObject *channel, uint8_t portID) override

dwStatus	setState (const char *state) override

dwStatus	validate () override

	~ExceptionSafeProcessNode () override=default

Public Member Functions inherited from dw::framework::Node
virtual dwStatus	getErrorSignal (dwGraphErrorSignal *&errorSignal)=0
	Get the pointer to the error signal for this node. More...

virtual dwStatus	getHealthSignal (dwGraphHealthSignal *&healthSignals, bool updateFromModule=false)=0
	Get the pointer to the health signal for this node. More...

virtual dwStatus	getName (const char **name)=0
	Get the name of the node. More...

virtual size_t	getPassCount () const noexcept=0
	Get number of passes in the node. More...

virtual dwStatus	getPasses (VectorFixed< Pass * > &passList)=0
	Get all the passes in the node. More...

virtual dwStatus	getPasses (VectorFixed< Pass * > &passList, dwProcessorType processorType, dwProcessType processType)=0
	Get node passes filtered by processor type and process type. More...

virtual dwStatus	reportCurrentErrorSignal (dwGraphErrorSignal &signal)=0
	A function that allows user override to update error signal It is automatically called by dwFramework when getErrorSignal is called and when pass returns non-success return code. More...

virtual dwStatus	reportCurrentHealthSignal (dwGraphHealthSignal &signal)=0
	A function that allows user override to update health signal It is automatically called by dwFramework during teardown and when pass returns non-success return code. More...

virtual dwStatus	reset ()=0
	Resets the state of the node. More...

virtual void	resetPorts ()=0
	Resets all the ports in the node. More...

virtual dwStatus	run ()=0
	Runs all the passes in the node. More...

virtual dwStatus	runPass (size_t passIndex)=0
	Run one pass by index as defined by the pass descriptors. More...

virtual dwStatus	runPassByID (uint8_t passID)=0
	Run one pass by ID as defined by the PassList enum class. More...

virtual dwStatus	setInputChannel (ChannelObject *channel, uint8_t portID)=0
	Sets an input channel for this node with an accompanying port. More...

virtual dwStatus	setInputChannel (ChannelObject *channel, uint8_t portID, dwSerializationType dataType)=0
	Sets an input channel for this node with an accompanying port. More...

virtual dwStatus	setIterationCount (uint32_t iterationCount)=0
	Sets the node's iteration count. More...

virtual dwStatus	setName (const char *name)=0
	Set the name of the node. More...

virtual dwStatus	setOutputChannel (ChannelObject *channel, uint8_t portID)=0
	Sets an output channel for this node with an accompanying port. More...

virtual dwStatus	setState (const char *state)=0
	Set the current state in node. Node implementation of this API need to be thread-safe. More...

virtual dwStatus	validate ()=0
	Checks that all mandatory ports are bound. The implementation should validate that all the ports are bound to the appropriate channels (any required ports, that is). For example, a camera node may have processed output and raw output ports, but only one is required to be bound. More...

virtual	~Node ()=default

Public Member Functions inherited from dw::framework::IContainsPreShutdownAction
virtual dwStatus	preShutdown ()=0
	actions to be taken before node shutdown More...

virtual	~IContainsPreShutdownAction ()=default

Static Public Member Functions
static std::unique_ptr< dwRigNode >	create (ParameterProvider const &provider)

static constexpr auto	describeInputPorts ()

static constexpr auto	describeOutputPorts ()

static constexpr auto	describeParameters ()

static constexpr auto	describePasses ()

Additional Inherited Members
Public Types inherited from dw::framework::Node
using	Name_t = FixedString< MAX_NAME_LEN >

Static Public Attributes inherited from dw::framework::Node
static constexpr size_t	MAX_NAME_LEN = 128

static constexpr uint32_t	MAX_PASS_COUNT = 256

static constexpr uint32_t	MAX_PORT_COUNT = 256

static constexpr uint8_t	PASS_SETUP = std::numeric_limits<uint8_t>::max() - 1

static constexpr uint8_t	PASS_TEARDOWN = std::numeric_limits<uint8_t>::max()

Protected Attributes inherited from dw::framework::ExceptionSafeProcessNode
std::unique_ptr< Node >	m_impl

Constructor & Destructor Documentation

◆ dwRigNode() [1/3]

dw::framework::dwRigNode::dwRigNode	(	dwRigNodeParams const &	params,
		dwContextHandle_t const	ctx
	)

◆ ~dwRigNode()

dw::framework::dwRigNode::~dwRigNode ( )

overridedefault

◆ dwRigNode() [2/3]

dw::framework::dwRigNode::dwRigNode ( const dwRigNode & other )

default

◆ dwRigNode() [3/3]

dw::framework::dwRigNode::dwRigNode ( dwRigNode && other )

default

Member Function Documentation

◆ create()

static std::unique_ptr< dwRigNode > dw::framework::dwRigNode::create ( ParameterProvider const & provider )

static

◆ describeInputPorts()

static constexpr auto dw::framework::dwRigNode::describeInputPorts ( )

inlinestaticconstexpr

Definition at line 95 of file dwRigNode.hpp.

References dw::framework::describePortCollection(), DW_DESCRIBE_PORT, DW_DESCRIBE_PORT_ARRAY, dw::framework::OPTIONAL, dw::framework::REQUIRED, dw::framework::SELF_CALIBRATION_NODE_MAX_CAMERAS, dw::framework::SELF_CALIBRATION_NODE_MAX_LIDARS, and dw::framework::SELF_CALIBRATION_NODE_MAX_RADARS.

◆ describeOutputPorts()

static constexpr auto dw::framework::dwRigNode::describeOutputPorts ( )

inlinestaticconstexpr

Definition at line 112 of file dwRigNode.hpp.

References dw::framework::describePortCollection().

◆ describeParameters()

static constexpr auto dw::framework::dwRigNode::describeParameters ( )

inlinestaticconstexpr

Definition at line 132 of file dwRigNode.hpp.

References dw::framework::calibrationOutputFileName, dw::framework::calibrationOverlayFileName, dw::framework::cameraSensorEnabled, dw::framework::cameraSensorRigIndices, dw::framework::describeConstructorArgument(), DW_DESCRIBE_PARAMETER, DW_DESCRIBE_UNNAMED_ARRAY_PARAMETER_WITH_SEMANTIC, DW_DESCRIBE_UNNAMED_PARAMETER, DW_DESCRIBE_UNNAMED_PARAMETER_WITH_SEMANTIC, dw::framework::imuSensorEnabled, dw::framework::imuSensorRigIndices, dw::framework::lidarSensorEnabled, dw::framework::lidarSensorRigIndices, dw::framework::radarSensorEnabled, dw::framework::radarSensorRigIndices, dw::framework::rigHandle, dw::framework::rigOutputFileName, dw::framework::SELF_CALIBRATION_NODE_MAX_CAMERAS, dw::framework::SELF_CALIBRATION_NODE_MAX_LIDARS, and dw::framework::SELF_CALIBRATION_NODE_MAX_RADARS.

◆ describePasses()

static constexpr auto dw::framework::dwRigNode::describePasses ( )

inlinestaticconstexpr

Definition at line 118 of file dwRigNode.hpp.

References dw::framework::describePass(), and dw::framework::describePassCollection().

◆ operator=() [1/2]

dwRigNode & dw::framework::dwRigNode::operator= ( const dwRigNode & )

default

◆ operator=() [2/2]

dwRigNode & dw::framework::dwRigNode::operator= ( dwRigNode && )

default

◆ preShutdown()

dwStatus dw::framework::dwRigNode::preShutdown ( )

overridevirtual

Implements dw::framework::IContainsPreShutdownAction.

The documentation for this class was generated from the following file:

src/dwframework/dwnodes/dwrignode/dwRigNode.hpp
