dw::framework::ManagedPortInputBase Class Reference

Detailed Description

Base class encapsulates ownership of buffers and interactions with channel in type-agnostic way.

Definition at line 207 of file ManagedPort.hpp.

Inheritance diagram for dw::framework::ManagedPortInputBase:

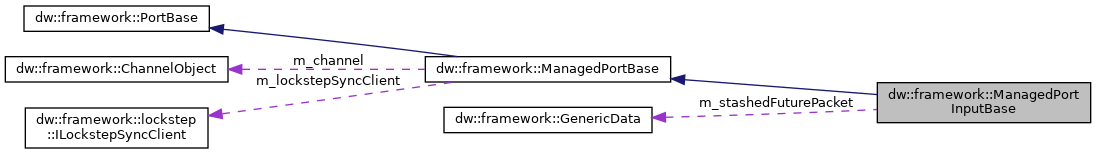

Collaboration diagram for dw::framework::ManagedPortInputBase:

Classes
struct	BoundProperties
struct	ConstructProperties
struct	Properties

Public Types
using	RingBuffer = dw::core::RingBuffer< GenericData >

Public Member Functions
void	bindChannel (ChannelObject *channel) override
const ChannelMetadata &	getMetadata ()
const Properties &	getProperties () const noexcept
bool	isBound () const noexcept override
bool	isBufferAvailable () const noexcept
void	recv ()
void	release ()
void	reset () override
void	sendAdvTimestamp ()
void	setCallbackAfterRecv (dw::core::Function< dwStatus()> callback)
Public Member Functions inherited from dw::framework::ManagedPortBase
virtual void	bindChannel (ChannelObject *channel)=0
void	bindLockstepSyncClient (dw::framework::lockstep::ILockstepSyncClient *syncClient)
ChannelObject *	getChannel ()
virtual bool	isBound () const noexcept=0
	ManagedPortBase ()
	ManagedPortBase (const ManagedPortBase &other)=delete
	ManagedPortBase (ManagedPortBase &&other)=delete
ManagedPortBase &	operator= (const ManagedPortBase &other)=delete
ManagedPortBase &	operator= (ManagedPortBase &&other)=delete
virtual void	reset ()
void	setCycleCount (uint32_t cycleCount)
void	setPeriod (uint32_t period)
virtual	~ManagedPortBase ()=default
Public Member Functions inherited from dw::framework::PortBase
virtual	~PortBase ()=default

Protected Member Functions
GenericData	getBufferGeneric () const
	ManagedPortInputBase (ConstructProperties props, GenericDataReference &&ref)
GenericData	popBufferGeneric ()
void	releaseToChannel (void *data)

Protected Attributes
RingBuffer	m_buffers
GenericData	m_stashedFuturePacket
bool	m_stashValid
Protected Attributes inherited from dw::framework::ManagedPortBase
ChannelObject *	m_channel
uint32_t	m_cycleCount
dw::framework::lockstep::ILockstepSyncClient *	m_lockstepSyncClient
uint32_t	m_period

---

Class Documentation

dw::framework::ManagedPortInputBase::BoundProperties

struct dw::framework::ManagedPortInputBase::BoundProperties

Class Members
uint32_t	dataOffset	Offset from when an incoming packet was produced to the current cycle that must elapse before a packet can be releaesd to a consumer.
bool	enableReuse	If all buffers have been released and there are no new buffers available on channel since recv() was last called, enableReuse will allow the last buffer acquired from the channel to be returned. Only 1 buffer will be re-usable in case multiple buffers were last acquired. TODO(chale): move this to ConstructProperties once properties are passed by node instead of via channel.
bool	syncEnabled	Whether this port is a sync port and will validate a packet's cycle counter.

dw::framework::ManagedPortInputBase::ConstructProperties

struct dw::framework::ManagedPortInputBase::ConstructProperties

Class Members
uint32_t	maxBuffers	The maximum number of buffers this port can acquire at once.
dwTime_t	waitTime	When recv() is called, calling thread will block at least waitTime number of us for a packet to arrive on the channel. TODO(chale): move to BoundProperties once it is supported.

dw::framework::ManagedPortInputBase::Properties

struct dw::framework::ManagedPortInputBase::Properties

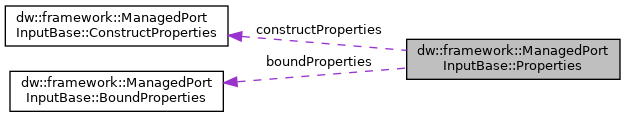

Collaboration diagram for dw::framework::ManagedPortInputBase::Properties:

Class Members
BoundProperties	boundProperties	Properties deduced once port is bound to channel.
ConstructProperties	constructProperties	Properties deduced when port is constructed.

Member Typedef Documentation

RingBuffer

using dw::framework::ManagedPortInputBase::RingBuffer = dw::core::RingBuffer<GenericData>

Definition at line 210 of file ManagedPort.hpp.

Constructor & Destructor Documentation

ManagedPortInputBase()

dw::framework::ManagedPortInputBase::ManagedPortInputBase ( ConstructProperties  props, GenericDataReference &&  ref  )

protected

Member Function Documentation

bindChannel()

void dw::framework::ManagedPortInputBase::bindChannel ( ChannelObject *  channel )

overridevirtual

Implements dw::framework::ManagedPortBase.

getBufferGeneric()

GenericData dw::framework::ManagedPortInputBase::getBufferGeneric ( ) const

protected

getMetadata()

const ChannelMetadata & dw::framework::ManagedPortInputBase::getMetadata

(

)

Get the metadata of the acquired buffer.

Returns

header of the acquired buffer

getProperties()

const Properties & dw::framework::ManagedPortInputBase::getProperties ( ) const

noexcept

Returns

Get the properties to initialize the port.

isBound()

bool dw::framework::ManagedPortInputBase::isBound ( ) const

overridevirtualnoexcept

Implements dw::framework::ManagedPortBase.

isBufferAvailable()

bool dw::framework::ManagedPortInputBase::isBufferAvailable ( ) const

noexcept

Returns

true if the Port is holding a buffer acquired from the channel.

popBufferGeneric()

GenericData dw::framework::ManagedPortInputBase::popBufferGeneric ( )

protected

recv()

void dw::framework::ManagedPortInputBase::recv

(

)

Receive buffers from the channel

Note

client should check after with isBufferAvailable() to know if a buffer was actually received.

when no buffers are available on the channel, this call will block waiting a buffer to arrive. (wait time given by properties)

once a buffers has arrived on channel, port will attempt to receive buffers until there are no more available or the maximum number has been received (max number given by properties)

Exceptions

when	unexpected error is received from channel or when buffers were already received (and not released).

release()

void dw::framework::ManagedPortInputBase::release

(

)

Release buffers to the channel

Note

when no buffers had previously been received this operation is a no-op.

Exceptions

when	unexpected error is received from channel.

releaseToChannel()

void dw::framework::ManagedPortInputBase::releaseToChannel ( void *  data )

protected

reset()

void dw::framework::ManagedPortInputBase::reset ( )

overridevirtual

Return all buffers to the channel as release() does, but also returns buffers held for re-use.

Note

does not drop the bound channel. Resets the input's port cycle count to 0.

Reimplemented from dw::framework::ManagedPortBase.

sendAdvTimestamp()

void dw::framework::ManagedPortInputBase::sendAdvTimestamp

(

)

Send an advance packet if a lockstep sync client is bound.

setCallbackAfterRecv()

void dw::framework::ManagedPortInputBase::setCallbackAfterRecv

(

dw::core::Function< dwStatus()>

callback

)

Set callback function to be invoked after receiving the new data. Note that the callback won't be called if the data is reused.

Member Data Documentation

m_buffers

RingBuffer dw::framework::ManagedPortInputBase::m_buffers

protected

Definition at line 343 of file ManagedPort.hpp.

m_stashedFuturePacket

GenericData dw::framework::ManagedPortInputBase::m_stashedFuturePacket

protected

Definition at line 344 of file ManagedPort.hpp.

m_stashValid

bool dw::framework::ManagedPortInputBase::m_stashValid

protected

Definition at line 345 of file ManagedPort.hpp.

---

The documentation for this class was generated from the following file:

• src/dwcgf/core/dwcgf/port/ManagedPort.hpp
