Lidar Calibration Sample

Table of Contents

• Description
• Running the Sample
• Output
• Additional information

Description

The NVIDIA^® DriveWorks Lidar Calibration sample demonstrates how to use DRIVE Calibration's Self-Calibration module. The sample uses ICP (Iterative Closest Point) to determine the relative transform between consecutive sweeps of Lidar. Additionally, the sample performs computations on the full point cloud of the latest sweep. Those additional computations are independent of the relative transformation.

Running the Sample

The Lidar Calibration sample, sample_calibration_lidar, accepts the following optional parameters. If none are specified, the Lidar extrinsics are estimated on a default dataset.

./sample_calibration_lidar --rig=[path/to/rig/configuration/file]
                           --lidar-sensor=[integer/sensor-name]
                           --imu-sensor=[integer/sensor-name]
                           --can-sensor=[integer/sensor-name]
                           --output-rig=[output/rig/file]
                           --run-once=[0|1]
                           --use-ego-pose=[0|1]
                           --verbose=[0|1]

where

--rig=[path/to/rig/configuration/file]
    Path to the rig configuration file.
    Default value: path/to/data/samples/lidar/rig_perturbed.json

--lidar-sensor=[integer]
    The index or name of the lidar sensor in the rig configuration file to calibrate
    Default value: 0

--imu-sensor=[integer]
    The index or name of the IMU sensor in the rig configuration file
    Default value: 0

--can-sensor=[integer]
    The index or name of the CAN sensor in the rig configuration file
    Default value: 0

--output-rig=[output/rig/file]
    Output rig configuration file, which contains updated Lidar Extrinsics.
    Default value: rig_updated.json

--run-once=[0|1]
    Controls whether the runs through a dataset once, rather than a loop.
    Default value: 0

--use-ego-pose=[0|1]
    Whether or not ego-motion pose is fed to Lidar calibration (in addition to ICP pose).
    Default value: 0

--verbose=[0|1]
    Whether or not the sample prints detailed estimation together with Lidar sweep number.
    Default value: 0

To pause the sample, press SPACE.
To exit the sample, press ESC.
To rotate and move the camera while the sample is paused, select and drag the image.

Note

Depending on --rigOutFile, you may need to start the sample with sudo.

Output

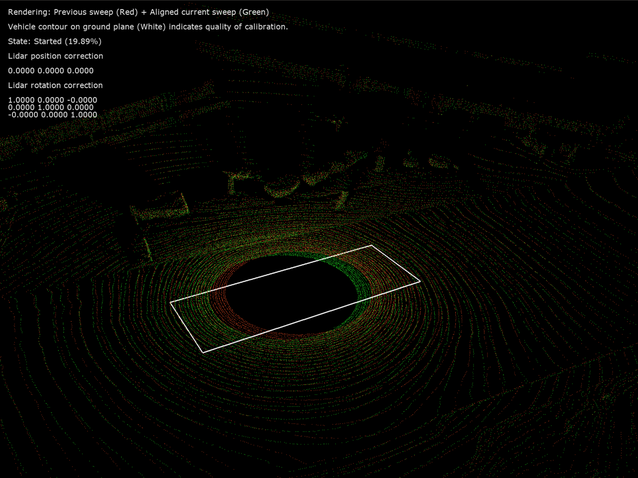

The sample application shows the previous sweep (Red) and the aligned current sweep (Green). After the calibration converges, the contour rectangle on the ground plane should be aligned co-planar with the ground Lidar points and parallel to the driving direction.

The sample application also shows the state of the calibration and the percentage completed, along with the computed update to the Lidar extrinsics calibration.

Lidar Calibration Sample

Additional information

For more information on Lidar calibration, see Lidar Self-Calibration.
