dw::framework::ISensorNode Class Reference

Detailed Description

Definition at line 277 of file Node.hpp.

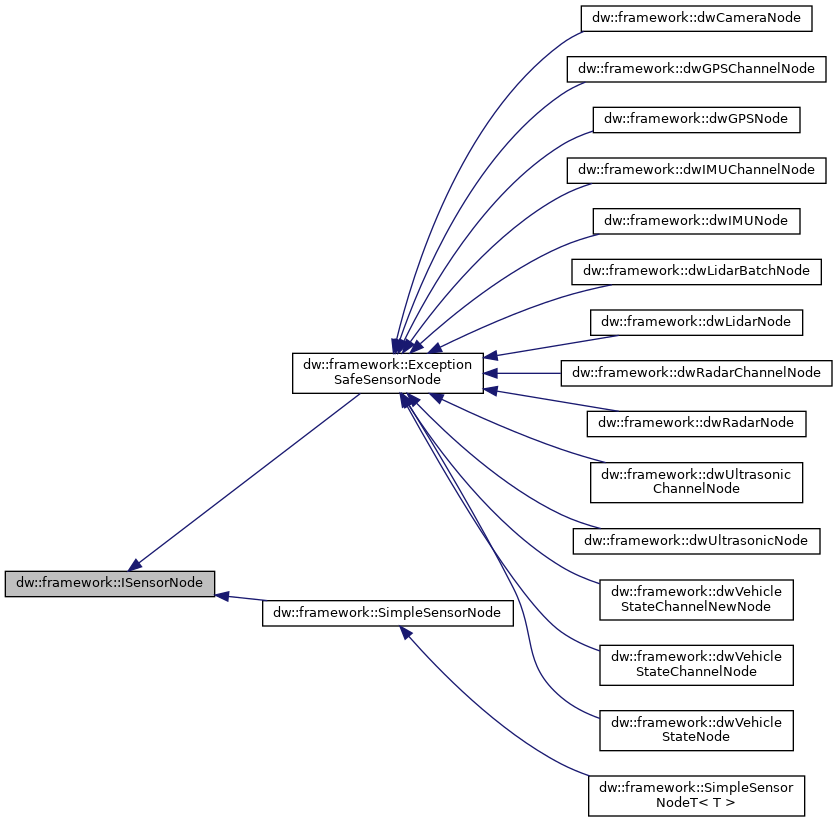

Inheritance diagram for dw::framework::ISensorNode:

Classes
struct	DataEvent

Public Types
using	DataEventReadCallback = dw::core::Function< bool(DataEvent &)>
enum class	DataEventType {   PRODUCE ,   DROP ,   NONE }
using	DataEventWriteCallback = dw::core::Function< void(DataEvent)>

Public Member Functions
virtual dwStatus	getNextTimestamp (dwTime_t &nextTimestamp)=0
	Get the next timestamp of the sensor. More...
virtual dwStatus	isVirtual (bool *isVirtualBool)=0
	distinguishes between a live and virtual sensor More...
virtual dwStatus	setAffinityMask (uint)=0
	Sets the affinity mask of the sensor. More...
virtual dwStatus	setDataEventReadCallback (DataEventReadCallback cb)=0
	Set read timestamp function for dataset replay. Timestamps not in the sequence returned by the callback will be dropped. More...
virtual dwStatus	setDataEventWriteCallback (DataEventWriteCallback cb)=0
	Set write timestamp function for live case. Each timestamp of data output from the node will be passed to this callback. More...
virtual dwStatus	setEndTime (dwTime_t)=0
	Set end timestamp for dataset replay. More...
virtual dwStatus	setLockstepDeterministicMode (bool enable)=0
	Set whether replay is running in lockstep deterministic mode. More...
virtual dwStatus	setStartTime (dwTime_t)=0
	Set start timestamp for dataset replay. More...
virtual dwStatus	setThreadPriority (int)=0
	Sets the thread priority of the sensor. More...
virtual dwStatus	start ()=0
	Start the sensor. More...
virtual dwStatus	stop ()=0
	Stop the sensor. More...

---

Class Documentation

dw::framework::ISensorNode::DataEvent

struct dw::framework::ISensorNode::DataEvent

Class Members
DataEventType	dataEventType	The type of event
dwStatus	status	The status of the node-run. invalid if dataEventType is DROP DW_SUCCESS if the node-run produced data. DW_TIME_OUT, DW_NOT_AVAILABLE, etc, sensor had not data for node-run. DW_END_OF_STREAM if sensor reached end of stream.
dwTime_t	timestamp	The timestamp of involved data. invalid if dataEventType is NONE.

Member Typedef Documentation

DataEventReadCallback

using dw::framework::ISensorNode::DataEventReadCallback = dw::core::Function<bool(DataEvent&)>

Definition at line 353 of file Node.hpp.

DataEventWriteCallback

using dw::framework::ISensorNode::DataEventWriteCallback = dw::core::Function<void(DataEvent)>

Definition at line 362 of file Node.hpp.

Member Enumeration Documentation

DataEventType

enum class dw::framework::ISensorNode::DataEventType

strong

Enumerator
PRODUCE
DROP
NONE

Definition at line 322 of file Node.hpp.

Member Function Documentation

getNextTimestamp()

virtual dwStatus dw::framework::ISensorNode::getNextTimestamp ( dwTime_t &  nextTimestamp )

pure virtual

Get the next timestamp of the sensor.

Parameters

nextTimestamp

Output timestamp

Returns

DW_SUCCESS

Implemented in dw::framework::ExceptionSafeSensorNode.

isVirtual()

virtual dwStatus dw::framework::ISensorNode::isVirtual ( bool *  isVirtualBool )

pure virtual

distinguishes between a live and virtual sensor

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::SimpleSensorNode, and dw::framework::ExceptionSafeSensorNode.

setAffinityMask()

virtual dwStatus dw::framework::ISensorNode::setAffinityMask ( uint  )

pure virtual

Sets the affinity mask of the sensor.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode.

setDataEventReadCallback()

virtual dwStatus dw::framework::ISensorNode::setDataEventReadCallback ( DataEventReadCallback  cb )

pure virtual

Set read timestamp function for dataset replay. Timestamps not in the sequence returned by the callback will be dropped.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode, and dw::framework::SimpleSensorNode.

setDataEventWriteCallback()

virtual dwStatus dw::framework::ISensorNode::setDataEventWriteCallback ( DataEventWriteCallback  cb )

pure virtual

Set write timestamp function for live case. Each timestamp of data output from the node will be passed to this callback.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode, and dw::framework::SimpleSensorNode.

setEndTime()

virtual dwStatus dw::framework::ISensorNode::setEndTime ( dwTime_t  )

pure virtual

Set end timestamp for dataset replay.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode.

setLockstepDeterministicMode()

virtual dwStatus dw::framework::ISensorNode::setLockstepDeterministicMode ( bool  enable )

pure virtual

Set whether replay is running in lockstep deterministic mode.

Parameters

enable

enables replay in lockstep deterministic mode

Returns

DW_SUCCESS

Implemented in dw::framework::ExceptionSafeSensorNode.

setStartTime()

virtual dwStatus dw::framework::ISensorNode::setStartTime ( dwTime_t  )

pure virtual

Set start timestamp for dataset replay.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode.

setThreadPriority()

virtual dwStatus dw::framework::ISensorNode::setThreadPriority ( int  )

pure virtual

Sets the thread priority of the sensor.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode.

start()

virtual dwStatus dw::framework::ISensorNode::start ( )

pure virtual

Start the sensor.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode, and dw::framework::SimpleSensorNode.

stop()

virtual dwStatus dw::framework::ISensorNode::stop ( )

pure virtual

Stop the sensor.

Returns

DW_SUCCESS, DW_FAILURE

Implemented in dw::framework::ExceptionSafeSensorNode, and dw::framework::SimpleSensorNode.

---

The documentation for this class was generated from the following file:

• src/dwcgf/core/dwcgf/node/Node.hpp
