Detailed Description

Picture parameter information for an H.264 picture.

Note: The referenceFrames array must contain the "DPB" as defined by the H.264 specification. In particular, once a reference frame has been decoded to a surface, that surface must continue to appear in the DPB until no longer required to predict any future frame. Once a surface is removed from the DPB, it can no longer be used as a reference, unless decoded again.

Also note that only surfaces previously generated using NvMediaIDERender may be used as reference frames.

Note: References to "copy of bitstream field" in the field descriptions may refer to data literally parsed from the bitstream, or derived from the bitstream using a mechanism described in the specification.

Definition at line 328 of file nvmedia_common_decode.h.

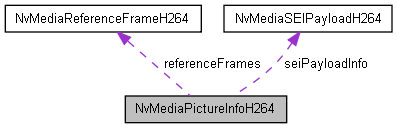

Collaboration diagram for NvMediaPictureInfoH264:

Data Fields
int32_t	field_order_cnt [2]
	[0]: top, [1]: bottom More...

uint32_t	is_reference
	Will the decoded frame be used as a reference later. More...

uint16_t	chroma_format_idc
	Copy of the H.264 bitstream field. More...

uint16_t	frame_num
	Copy of the H.264 bitstream field. More...

uint8_t	field_pic_flag
	Copy of the H.264 bitstream field. More...

uint8_t	bottom_field_flag
	Copy of the H.264 bitstream field. More...

uint8_t	num_ref_frames
	Copy of the H.264 bitstream field. More...

uint8_t	mb_adaptive_frame_field_flag
	Copy of the H.264 bitstream field. More...

uint8_t	constrained_intra_pred_flag
	Copy of the H.264 bitstream field. More...

uint8_t	weighted_pred_flag
	Copy of the H.264 bitstream field. More...

uint8_t	weighted_bipred_idc
	Copy of the H.264 bitstream field. More...

uint8_t	frame_mbs_only_flag
	Copy of the H.264 bitstream field. More...

uint8_t	transform_8x8_mode_flag
	Copy of the H.264 bitstream field. More...

int8_t	chroma_qp_index_offset
	Copy of the H.264 bitstream field. More...

int8_t	second_chroma_qp_index_offset
	Copy of the H.264 bitstream field. More...

int8_t	pic_init_qp_minus26
	Copy of the H.264 bitstream field. More...

uint8_t	num_ref_idx_l0_active_minus1
	Copy of the H.264 bitstream field. More...

uint8_t	num_ref_idx_l1_active_minus1
	Copy of the H.264 bitstream field. More...

uint8_t	log2_max_frame_num_minus4
	Copy of the H.264 bitstream field. More...

uint8_t	pic_order_cnt_type
	Copy of the H.264 bitstream field. More...

uint8_t	log2_max_pic_order_cnt_lsb_minus4
	Copy of the H.264 bitstream field. More...

uint8_t	delta_pic_order_always_zero_flag
	Copy of the H.264 bitstream field. More...

uint8_t	direct_8x8_inference_flag
	Copy of the H.264 bitstream field. More...

uint8_t	entropy_coding_mode_flag
	Copy of the H.264 bitstream field. More...

uint8_t	pic_order_present_flag
	Copy of the H.264 bitstream field. More...

uint8_t	deblocking_filter_control_present_flag
	Copy of the H.264 bitstream field. More...

uint8_t	redundant_pic_cnt_present_flag
	Copy of the H.264 bitstream field. More...

uint8_t	num_slice_groups_minus1
	Copy of the H.264 bitstream field. More...

uint8_t	slice_group_map_type
	Copy of the H.264 bitstream field. More...

uint32_t	slice_group_change_rate_minus1
	Copy of the H.264 bitstream field. More...

uint8_t *	slice_group_map
	Slice group map. More...

uint8_t	fmo_aso_enable
	Copy of the H.264 bitstream field. More...

uint8_t	scaling_matrix_present
	Copy of the H.264 bitstream field. More...

uint8_t	scaling_lists_4x4 [6][16]
	Copy of the H.264 bitstream field, converted to raster order. More...

uint8_t	scaling_lists_8x8 [2][64]
	Copy of the H.264 bitstream field, converted to raster order. More...

NvMediaReferenceFrameH264	referenceFrames [16]
	See NvMediaPictureInfoH264 for instructions regarding this field. More...

uint32_t	nNumSlices
	Number of slices in this picture. More...

uint32_t *	pSliceDataOffsets
	Passing NULL for pSliceDataOffsets disables error-concealment. More...

uint8_t	frameType
	0:FrameType_B 1:FrameType_P 2:FrameType_I More...

struct {
uint16_t num_views_minus1
	Copy of the H.264 mvc bitstream field. More...

uint16_t view_id
	Copy of the H.264 mvc bitstream field. More...

uint8_t inter_view_flag
	Copy of the H.264 mvc bitstream field. More...

uint8_t num_inter_view_refs_l0
	Copy of the H.264 mvc bitstream field. More...

uint8_t num_inter_view_refs_l1
	Copy of the H.264 mvc bitstream field. More...

uint8_t MVCReserved8Bits
	Copy of the H.264 mvc bitstream field. More...

uint16_t InterViewRefsL0 [16]
	Copy of the H.264 mvc bitstream field. More...

uint16_t InterViewRefsL1 [16]
	Copy of the H.264 mvc bitstream field. More...

}	mvcext
	MVC extension. More...

NvMediaSEIPayloadH264	seiPayloadInfo
	Parser only: SEI payload info. More...

uint32_t	pic_width_in_mbs_minus1
	Copy of the H.264 bitstream field. More...

uint32_t	pic_height_in_map_units_minus1
	Copy of the H.264 bitstream field. More...

int32_t	last_sps_id
	Copy of the H.264 bitstream field. More...

int32_t	last_pps_id
	Copy of the H.264 bitstream field. More...

int32_t	qpprime_y_zero_transform_bypass_flag
	Copy of the H.264 bitstream field, qpprime_y_zero_transform_bypass_flag. More...

Field Documentation

◆ bottom_field_flag

uint8_t NvMediaPictureInfoH264::bottom_field_flag

Copy of the H.264 bitstream field.

Definition at line 341 of file nvmedia_common_decode.h.

◆ chroma_format_idc

uint16_t NvMediaPictureInfoH264::chroma_format_idc

Copy of the H.264 bitstream field.

Definition at line 335 of file nvmedia_common_decode.h.

◆ chroma_qp_index_offset

int8_t NvMediaPictureInfoH264::chroma_qp_index_offset

Copy of the H.264 bitstream field.

Definition at line 357 of file nvmedia_common_decode.h.

◆ constrained_intra_pred_flag

uint8_t NvMediaPictureInfoH264::constrained_intra_pred_flag

Copy of the H.264 bitstream field.

Definition at line 347 of file nvmedia_common_decode.h.

◆ deblocking_filter_control_present_flag

uint8_t NvMediaPictureInfoH264::deblocking_filter_control_present_flag

Copy of the H.264 bitstream field.

Definition at line 381 of file nvmedia_common_decode.h.

◆ delta_pic_order_always_zero_flag

uint8_t NvMediaPictureInfoH264::delta_pic_order_always_zero_flag

Copy of the H.264 bitstream field.

Definition at line 373 of file nvmedia_common_decode.h.

◆ direct_8x8_inference_flag

uint8_t NvMediaPictureInfoH264::direct_8x8_inference_flag

Copy of the H.264 bitstream field.

Definition at line 375 of file nvmedia_common_decode.h.

◆ entropy_coding_mode_flag

uint8_t NvMediaPictureInfoH264::entropy_coding_mode_flag

Copy of the H.264 bitstream field.

Definition at line 377 of file nvmedia_common_decode.h.

◆ field_order_cnt

int32_t NvMediaPictureInfoH264::field_order_cnt[2]

[0]: top, [1]: bottom

Definition at line 330 of file nvmedia_common_decode.h.

◆ field_pic_flag

uint8_t NvMediaPictureInfoH264::field_pic_flag

Copy of the H.264 bitstream field.

Definition at line 339 of file nvmedia_common_decode.h.

◆ fmo_aso_enable

uint8_t NvMediaPictureInfoH264::fmo_aso_enable

Copy of the H.264 bitstream field.

Definition at line 393 of file nvmedia_common_decode.h.

◆ frame_mbs_only_flag

uint8_t NvMediaPictureInfoH264::frame_mbs_only_flag

Copy of the H.264 bitstream field.

Definition at line 353 of file nvmedia_common_decode.h.

◆ frame_num

uint16_t NvMediaPictureInfoH264::frame_num

Copy of the H.264 bitstream field.

Definition at line 337 of file nvmedia_common_decode.h.

◆ frameType

uint8_t NvMediaPictureInfoH264::frameType

0:FrameType_B 1:FrameType_P 2:FrameType_I

Definition at line 410 of file nvmedia_common_decode.h.

◆ inter_view_flag

uint8_t NvMediaPictureInfoH264::inter_view_flag

Copy of the H.264 mvc bitstream field.

Definition at line 419 of file nvmedia_common_decode.h.

◆ InterViewRefsL0

uint16_t NvMediaPictureInfoH264::InterViewRefsL0[16]

Copy of the H.264 mvc bitstream field.

Definition at line 427 of file nvmedia_common_decode.h.

◆ InterViewRefsL1

uint16_t NvMediaPictureInfoH264::InterViewRefsL1[16]

Copy of the H.264 mvc bitstream field.

Definition at line 429 of file nvmedia_common_decode.h.

◆ is_reference

uint32_t NvMediaPictureInfoH264::is_reference

Will the decoded frame be used as a reference later.

Definition at line 332 of file nvmedia_common_decode.h.

◆ last_pps_id

int32_t NvMediaPictureInfoH264::last_pps_id

Copy of the H.264 bitstream field.

Required for OTF

Definition at line 441 of file nvmedia_common_decode.h.

◆ last_sps_id

int32_t NvMediaPictureInfoH264::last_sps_id

Copy of the H.264 bitstream field.

Required for OTF

Definition at line 439 of file nvmedia_common_decode.h.

◆ log2_max_frame_num_minus4

uint8_t NvMediaPictureInfoH264::log2_max_frame_num_minus4

Copy of the H.264 bitstream field.

Definition at line 367 of file nvmedia_common_decode.h.

◆ log2_max_pic_order_cnt_lsb_minus4

uint8_t NvMediaPictureInfoH264::log2_max_pic_order_cnt_lsb_minus4

Copy of the H.264 bitstream field.

Definition at line 371 of file nvmedia_common_decode.h.

◆ mb_adaptive_frame_field_flag

uint8_t NvMediaPictureInfoH264::mb_adaptive_frame_field_flag

Copy of the H.264 bitstream field.

Definition at line 345 of file nvmedia_common_decode.h.

◆ mvcext

struct { ... } NvMediaPictureInfoH264::mvcext

MVC extension.

◆ MVCReserved8Bits

uint8_t NvMediaPictureInfoH264::MVCReserved8Bits

Copy of the H.264 mvc bitstream field.

Definition at line 425 of file nvmedia_common_decode.h.

◆ nNumSlices

uint32_t NvMediaPictureInfoH264::nNumSlices

Number of slices in this picture.

nNumSlices entries contain the offset of each slice within the bitstream data buffer. Required for nvdec.

Definition at line 406 of file nvmedia_common_decode.h.

◆ num_inter_view_refs_l0

uint8_t NvMediaPictureInfoH264::num_inter_view_refs_l0

Copy of the H.264 mvc bitstream field.

Definition at line 421 of file nvmedia_common_decode.h.

◆ num_inter_view_refs_l1

uint8_t NvMediaPictureInfoH264::num_inter_view_refs_l1

Copy of the H.264 mvc bitstream field.

Definition at line 423 of file nvmedia_common_decode.h.

◆ num_ref_frames

uint8_t NvMediaPictureInfoH264::num_ref_frames

Copy of the H.264 bitstream field.

Definition at line 343 of file nvmedia_common_decode.h.

◆ num_ref_idx_l0_active_minus1

uint8_t NvMediaPictureInfoH264::num_ref_idx_l0_active_minus1

Copy of the H.264 bitstream field.

Definition at line 363 of file nvmedia_common_decode.h.

◆ num_ref_idx_l1_active_minus1

uint8_t NvMediaPictureInfoH264::num_ref_idx_l1_active_minus1

Copy of the H.264 bitstream field.

Definition at line 365 of file nvmedia_common_decode.h.

◆ num_slice_groups_minus1

uint8_t NvMediaPictureInfoH264::num_slice_groups_minus1

Copy of the H.264 bitstream field.

Definition at line 385 of file nvmedia_common_decode.h.

◆ num_views_minus1

uint16_t NvMediaPictureInfoH264::num_views_minus1

Copy of the H.264 mvc bitstream field.

Definition at line 415 of file nvmedia_common_decode.h.

◆ pic_height_in_map_units_minus1

uint32_t NvMediaPictureInfoH264::pic_height_in_map_units_minus1

Copy of the H.264 bitstream field.

Required for OTF

Definition at line 437 of file nvmedia_common_decode.h.

◆ pic_init_qp_minus26

int8_t NvMediaPictureInfoH264::pic_init_qp_minus26

Copy of the H.264 bitstream field.

Definition at line 361 of file nvmedia_common_decode.h.

◆ pic_order_cnt_type

uint8_t NvMediaPictureInfoH264::pic_order_cnt_type

Copy of the H.264 bitstream field.

Definition at line 369 of file nvmedia_common_decode.h.

◆ pic_order_present_flag

uint8_t NvMediaPictureInfoH264::pic_order_present_flag

Copy of the H.264 bitstream field.

Definition at line 379 of file nvmedia_common_decode.h.

◆ pic_width_in_mbs_minus1

uint32_t NvMediaPictureInfoH264::pic_width_in_mbs_minus1

Copy of the H.264 bitstream field.

Required for OTF

Definition at line 435 of file nvmedia_common_decode.h.

◆ pSliceDataOffsets

uint32_t* NvMediaPictureInfoH264::pSliceDataOffsets

Passing NULL for pSliceDataOffsets disables error-concealment.

Definition at line 408 of file nvmedia_common_decode.h.

◆ qpprime_y_zero_transform_bypass_flag

int32_t NvMediaPictureInfoH264::qpprime_y_zero_transform_bypass_flag

Copy of the H.264 bitstream field, qpprime_y_zero_transform_bypass_flag.

Definition at line 443 of file nvmedia_common_decode.h.

◆ redundant_pic_cnt_present_flag

uint8_t NvMediaPictureInfoH264::redundant_pic_cnt_present_flag

Copy of the H.264 bitstream field.

Definition at line 383 of file nvmedia_common_decode.h.

◆ referenceFrames

NvMediaReferenceFrameH264 NvMediaPictureInfoH264::referenceFrames[16]

See NvMediaPictureInfoH264 for instructions regarding this field.

Definition at line 403 of file nvmedia_common_decode.h.

◆ scaling_lists_4x4

uint8_t NvMediaPictureInfoH264::scaling_lists_4x4[6][16]

Copy of the H.264 bitstream field, converted to raster order.

Definition at line 398 of file nvmedia_common_decode.h.

◆ scaling_lists_8x8

uint8_t NvMediaPictureInfoH264::scaling_lists_8x8[2][64]

Copy of the H.264 bitstream field, converted to raster order.

Definition at line 400 of file nvmedia_common_decode.h.

◆ scaling_matrix_present

uint8_t NvMediaPictureInfoH264::scaling_matrix_present

Copy of the H.264 bitstream field.

Definition at line 395 of file nvmedia_common_decode.h.

◆ second_chroma_qp_index_offset

int8_t NvMediaPictureInfoH264::second_chroma_qp_index_offset

Copy of the H.264 bitstream field.

Definition at line 359 of file nvmedia_common_decode.h.

◆ seiPayloadInfo

NvMediaSEIPayloadH264 NvMediaPictureInfoH264::seiPayloadInfo

Parser only: SEI payload info.

Definition at line 433 of file nvmedia_common_decode.h.

◆ slice_group_change_rate_minus1

uint32_t NvMediaPictureInfoH264::slice_group_change_rate_minus1

Copy of the H.264 bitstream field.

Definition at line 389 of file nvmedia_common_decode.h.

◆ slice_group_map

uint8_t* NvMediaPictureInfoH264::slice_group_map

Slice group map.

Definition at line 391 of file nvmedia_common_decode.h.

◆ slice_group_map_type

uint8_t NvMediaPictureInfoH264::slice_group_map_type

Copy of the H.264 bitstream field.

Definition at line 387 of file nvmedia_common_decode.h.

◆ transform_8x8_mode_flag

uint8_t NvMediaPictureInfoH264::transform_8x8_mode_flag

Copy of the H.264 bitstream field.

Definition at line 355 of file nvmedia_common_decode.h.

◆ view_id

uint16_t NvMediaPictureInfoH264::view_id

Copy of the H.264 mvc bitstream field.

Definition at line 417 of file nvmedia_common_decode.h.

◆ weighted_bipred_idc

uint8_t NvMediaPictureInfoH264::weighted_bipred_idc

Copy of the H.264 bitstream field.

Definition at line 351 of file nvmedia_common_decode.h.

◆ weighted_pred_flag

uint8_t NvMediaPictureInfoH264::weighted_pred_flag

Copy of the H.264 bitstream field.

Definition at line 349 of file nvmedia_common_decode.h.

The documentation for this struct was generated from the following file:

nvmedia_common_decode.h


NVIDIA DRIVE OS Linux SDK API Reference	6.0.9 Release

NVIDIA DRIVE OS Linux SDK API Reference

6.0.9 Release

Detailed Description

Data Fields

Field Documentation

◆ bottom_field_flag

◆ chroma_format_idc

◆ chroma_qp_index_offset

◆ constrained_intra_pred_flag

◆ deblocking_filter_control_present_flag

◆ delta_pic_order_always_zero_flag

◆ direct_8x8_inference_flag

◆ entropy_coding_mode_flag

◆ field_order_cnt

◆ field_pic_flag

◆ fmo_aso_enable

◆ frame_mbs_only_flag

◆ frame_num

◆ frameType

◆ inter_view_flag

◆ InterViewRefsL0

◆ InterViewRefsL1

◆ is_reference

◆ last_pps_id

◆ last_sps_id

◆ log2_max_frame_num_minus4

◆ log2_max_pic_order_cnt_lsb_minus4

◆ mb_adaptive_frame_field_flag

◆ mvcext

◆ MVCReserved8Bits

◆ nNumSlices

◆ num_inter_view_refs_l0

◆ num_inter_view_refs_l1

◆ num_ref_frames

◆ num_ref_idx_l0_active_minus1

◆ num_ref_idx_l1_active_minus1

◆ num_slice_groups_minus1

◆ num_views_minus1

◆ pic_height_in_map_units_minus1

◆ pic_init_qp_minus26

◆ pic_order_cnt_type

◆ pic_order_present_flag

◆ pic_width_in_mbs_minus1

◆ pSliceDataOffsets

◆ qpprime_y_zero_transform_bypass_flag

◆ redundant_pic_cnt_present_flag

◆ referenceFrames

◆ scaling_lists_4x4

◆ scaling_lists_8x8

◆ scaling_matrix_present

◆ second_chroma_qp_index_offset

◆ seiPayloadInfo

◆ slice_group_change_rate_minus1

◆ slice_group_map

◆ slice_group_map_type

◆ transform_8x8_mode_flag

◆ view_id

◆ weighted_bipred_idc

◆ weighted_pred_flag
