nvsipl::NvSIPLPipelineConfiguration Struct Reference

Detailed Description

Defines the camera pipeline configuration.

Definition at line 302 of file NvSIPLPipelineMgr.hpp.

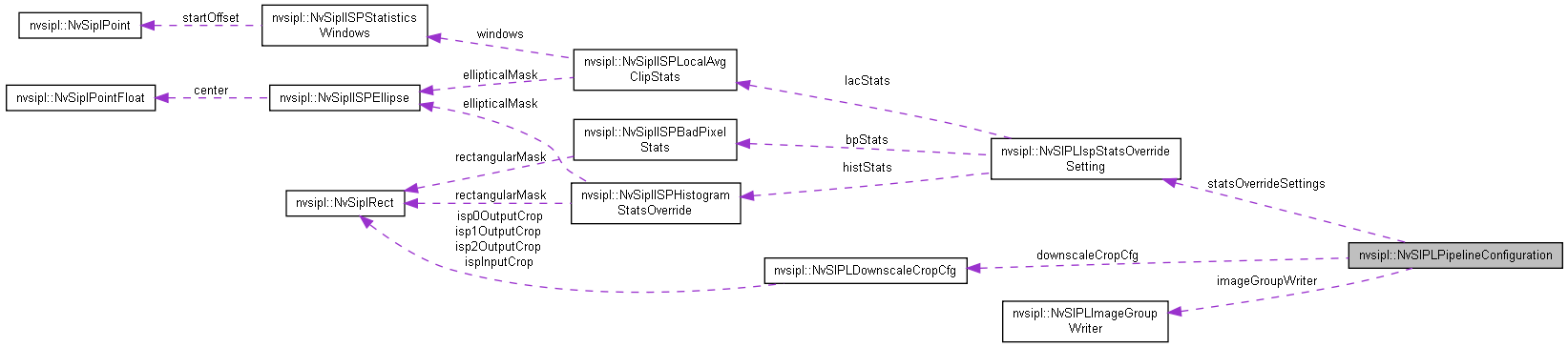

Collaboration diagram for nvsipl::NvSIPLPipelineConfiguration:

Data Fields
bool	captureOutputRequested {false}
	true if the client wants capture output frames to be delivered More...
bool	isp0OutputRequested {false}
	true if the client wants frames to be delivered from the first ISP output More...
bool	isp1OutputRequested {false}
	true if the client wants frames to be delivered from the second ISP output More...
bool	isp2OutputRequested {false}
	true if the client wants frames to be delivered from the third ISP output More...
NvSIPLDownscaleCropCfg	downscaleCropCfg {}
	Holds a downscale and crop configuration. More...
NvSIPLIspStatsOverrideSetting	statsOverrideSettings {}
	Holds ISP statistics override parameters. More...
NvSIPLImageGroupWriter *	imageGroupWriter {nullptr}
	Holds a pointer to an NvSIPLImageGroupWriter. More...
bool	disableSubframe {false}
	true if the client wants to disable the subframe feature More...

Field Documentation

captureOutputRequested

bool nvsipl::NvSIPLPipelineConfiguration::captureOutputRequested {false}

true if the client wants capture output frames to be delivered

Definition at line 305 of file NvSIPLPipelineMgr.hpp.

disableSubframe

bool nvsipl::NvSIPLPipelineConfiguration::disableSubframe {false}

true if the client wants to disable the subframe feature

Definition at line 330 of file NvSIPLPipelineMgr.hpp.

downscaleCropCfg

NvSIPLDownscaleCropCfg nvsipl::NvSIPLPipelineConfiguration::downscaleCropCfg {}

Holds a downscale and crop configuration.

Definition at line 317 of file NvSIPLPipelineMgr.hpp.

imageGroupWriter

NvSIPLImageGroupWriter* nvsipl::NvSIPLPipelineConfiguration::imageGroupWriter {nullptr}

Holds a pointer to an NvSIPLImageGroupWriter.

Definition at line 327 of file NvSIPLPipelineMgr.hpp.

isp0OutputRequested

bool nvsipl::NvSIPLPipelineConfiguration::isp0OutputRequested {false}

true if the client wants frames to be delivered from the first ISP output

Definition at line 308 of file NvSIPLPipelineMgr.hpp.

isp1OutputRequested

bool nvsipl::NvSIPLPipelineConfiguration::isp1OutputRequested {false}

true if the client wants frames to be delivered from the second ISP output

Definition at line 311 of file NvSIPLPipelineMgr.hpp.

isp2OutputRequested

bool nvsipl::NvSIPLPipelineConfiguration::isp2OutputRequested {false}

true if the client wants frames to be delivered from the third ISP output

Definition at line 314 of file NvSIPLPipelineMgr.hpp.

statsOverrideSettings

NvSIPLIspStatsOverrideSetting nvsipl::NvSIPLPipelineConfiguration::statsOverrideSettings {}

Holds ISP statistics override parameters.

ISP statistcis settings enabled in @NvSIPLIspStatsOverrideSetting will override the statistics settings provided in NITO

Definition at line 324 of file NvSIPLPipelineMgr.hpp.

---

The documentation for this struct was generated from the following file:

• NvSIPLPipelineMgr.hpp
