Description

The Structure from Motion (SFM) sample demonstrates the triangulation functionality of the SFM module; a car pose is estimated entirely from CAN data using the NVIDIA^® DriveWorks egomotion module. The car has a 4-fisheye camera rig that is pre-calibrated. Features are detected and tracked using the features module. Points are triangulated for each frame by using the estimated pose and tracked features. Vehicle motion is parsed from CAN data using a custom VehicleIO plugin.

Running the Sample

The structure from motion sample, sample_sfm, accepts the following optional parameters. If none are specified, it will process four supplied pre-recorded video.

./sample_sfm --baseDir=[path/to/rig/dir]
             --rig=[rig.json]
             --maxFeatureCount=[integer]
             --trackMode=[0|1]
             --useHalf=[0|1]
             --displacementThreshold=[fp_number]
             --enableAdaptiveWindowSize=[0|1]

where

--baseDir=[path/to/rig/dir]
    Path to the folder containint the rig.json file.
    Default value: path/to/data/samples/sfm/triangulation

--rig=[rig.json]
    A `rig.json` file as serialized by the DriveWorks rig module, or as produced by the DriveWorks calibration tool.
    The rig must include the 4 camera sensors and one CAN sensor.
    The rig sensors must contain valid protocol and parameter properties to open the virtual sensors.
    The video files must be a H.264 stream.
    Video containers as MP4, AVI, MKV, etc. are not supported.
    The rig file also points to a video timestamps text file where each row contains the frame index
    (starting at 1) and the timestamp for all cameras. It is read by the camera virtual sensor.
    The rig file must contain a valid VehicleIO driver.
    Default value: rig.json

--maxFeatureCount=[integer]
    The manixum amount of features stored for tracking.
    Default value: 2000

--trackMode=[0|1]
    Defines feature tracking mode.
    0: translation-only KLT tracker or Sparse LK PVA tracker
    1: translation-scale fast KLT tracker
    Default value: 0

--useHalf=[0|1]
    Defines whether to use fp16 for tracking.
    --useHalf=0 uses fp32 for tracking.
    --useHalf=1 uses fp16 for tracking.
    This parameter only takes effect when --trackMode=1.
    Default value: 0

--displacementThreshold=[fp_number]
    Defines the early stop threshold during translation-only tracking.
    This parameter only takes effect when --trackMode=1.
    Default value: 0.1

--enableAdaptiveWindowSize=[0|1]
    Defines whether to use full window size at the lowest and the highest levels,
    and smaller window size at the rest of levels during tracking.
    This parameter only takes effect when --trackMode=1.
    Default value: 1

If a mouse is available, the left button rotates the 3D view, the right button translate, and the mouse wheel zooms.

While the sample is running the following commands are available:

Press V to enable / disable pose estimation.
Press F to enable / disable feature position prediction.
Press Space to pause / resume execution.
Press Q to switch between different camera views.
Press R to restart playback.

Output

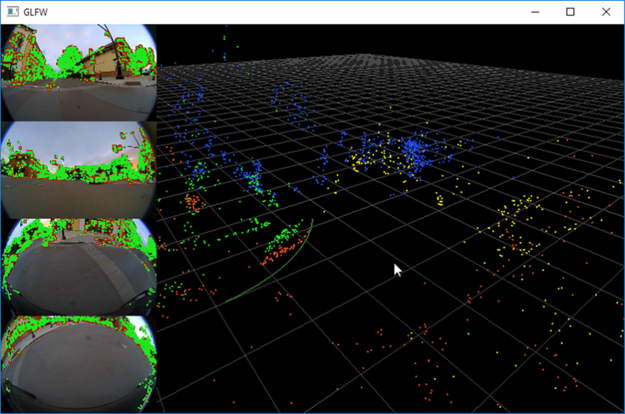

The left side of the screen shows the 4 input images; tracked features are shown in green. Triangulated points are reprojected back onto the camera and shown in red. The right side shows a 3D view of the triangulated point cloud.

In 3D, the colors are:

Red points = points from frontal camera
Green points = points from rear camera
Blue points = points from left camera
Yellow points = points from right camera
Green/red line = path of the car

Structure from Motion sample

Additional Information

For more details see Structure from Motion (SFM) .
