Detailed Description

Holds picture parameter information for an H.265 picture.

Note: The NvMediaPictureInfoH264.referenceFrames array must contain the "DPB" as defined by the H.265 specification. Once a reference frame has been decoded to a surface, that surface must continue to appear in the DPB until it is no longer required to predict any future frame. Once a surface is removed from the DPB, it is no longer used as a reference unless decoded again. Only surfaces previously generated using NvMediaIDERender may be used as reference frames. References to "copy of bitstream field" in the field descriptions may refer to data literally parsed from the bitstream, or derived from the bitstream using a mechanism described in the specification.

Definition at line 538 of file nvmedia_common_decode.h.

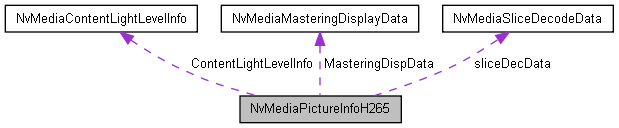

Collaboration diagram for NvMediaPictureInfoH265:

[legend]

Data Fields
uint32_t	pic_width_in_luma_samples
	Holds a copy of the H.265 bitstream field. More...

uint32_t	pic_height_in_luma_samples
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_min_luma_coding_block_size_minus3
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_diff_max_min_luma_coding_block_size
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_min_transform_block_size_minus2
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_diff_max_min_transform_block_size
	Holds a copy of the H.265 bitstream field. More...

uint8_t	pcm_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_min_pcm_luma_coding_block_size_minus3
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_diff_max_min_pcm_luma_coding_block_size
	Holds a copy of the H.265 bitstream field. More...

uint8_t	bit_depth_luma
	Holds a copy of the H.265 bitstream field. More...

uint8_t	bit_depth_chroma
	Holds a copy of the H.265 bitstream field. More...

uint8_t	pcm_sample_bit_depth_luma_minus1
	Holds a copy of the H.265 bitstream field. More...

uint8_t	pcm_sample_bit_depth_chroma_minus1
	Holds a copy of the H.265 bitstream field. More...

uint8_t	pcm_loop_filter_disabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	strong_intra_smoothing_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	max_transform_hierarchy_depth_intra
	Holds a copy of the H.265 bitstream field. More...

uint8_t	max_transform_hierarchy_depth_inter
	Holds a copy of the H.265 bitstream field. More...

uint8_t	amp_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	separate_colour_plane_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_max_pic_order_cnt_lsb_minus4
	Holds a copy of the H.265 bitstream field. More...

uint8_t	num_short_term_ref_pic_sets
	Holds a copy of the H.265 bitstream field. More...

uint8_t	long_term_ref_pics_present_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	num_long_term_ref_pics_sps
	Holds a copy of the H.265 bitstream field. More...

uint8_t	sps_temporal_mvp_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	sample_adaptive_offset_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	scaling_list_enable_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	chroma_format_idc
	Holds a copy of the chroma_format_idc. More...

uint8_t	reserved1 [3]
	Holds a copy of the H.265 bitstream field. More...

uint8_t	dependent_slice_segments_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	slice_segment_header_extension_present_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	sign_data_hiding_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	cu_qp_delta_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	diff_cu_qp_delta_depth
	Holds a copy of the H.265 bitstream field. More...

int8_t	init_qp_minus26
	Holds a copy of the H.265 bitstream field. More...

int8_t	pps_cb_qp_offset
	Holds a copy of the H.265 bitstream field. More...

int8_t	pps_cr_qp_offset
	Holds a copy of the H.265 bitstream field. More...

uint8_t	constrained_intra_pred_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	weighted_pred_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	weighted_bipred_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	transform_skip_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	transquant_bypass_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	entropy_coding_sync_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	log2_parallel_merge_level_minus2
	Holds a copy of the H.265 bitstream field. More...

uint8_t	num_extra_slice_header_bits
	Holds a copy of the H.265 bitstream field. More...

uint8_t	loop_filter_across_tiles_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	loop_filter_across_slices_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	output_flag_present_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	num_ref_idx_l0_default_active_minus1
	Holds a copy of the H.265 bitstream field. More...

uint8_t	num_ref_idx_l1_default_active_minus1
	Holds a copy of the H.265 bitstream field. More...

uint8_t	lists_modification_present_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	cabac_init_present_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	pps_slice_chroma_qp_offsets_present_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	deblocking_filter_control_present_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	deblocking_filter_override_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	pps_deblocking_filter_disabled_flag
	Holds a copy of the H.265 bitstream field. More...

int8_t	pps_beta_offset_div2
	Holds a copy of the H.265 bitstream field. More...

int8_t	pps_tc_offset_div2
	Holds a copy of the H.265 bitstream field. More...

uint8_t	tiles_enabled_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	uniform_spacing_flag
	Holds a copy of the H.265 bitstream field. More...

uint8_t	num_tile_columns_minus1
	Holds a copy of the H.265 bitstream field. More...

uint8_t	num_tile_rows_minus1
	Holds a copy of the H.265 bitstream field. More...

uint16_t	column_width_minus1 [22]
	Holds a copy of the H.265 bitstream field. More...

uint16_t	row_height_minus1 [20]
	Holds a copy of the H.265 bitstream field. More...

uint32_t	iCur
	Holds a copy of the H.265 bitstream field. More...

uint32_t	IDRPicFlag
	Holds a copy of the H.265 bitstream field. More...

uint32_t	RAPPicFlag
	Holds a copy of the H.265 bitstream field. More...

uint32_t	NumDeltaPocsOfRefRpsIdx
	Holds a copy of the H.265 bitstream field. More...

uint32_t	NumPocTotalCurr
	Holds a copy of the H.265 bitstream field. More...

uint32_t	NumPocStCurrBefore
	Holds a copy of the H.265 bitstream field. More...

uint32_t	NumPocStCurrAfter
	Holds a copy of the H.265 bitstream field. More...

uint32_t	NumPocLtCurr
	Holds a copy of the H.265 bitstream field. More...

uint32_t	NumBitsToSkip
	Holds a copy of the H.265 bitstream field. More...

int32_t	CurrPicOrderCntVal
	Holds a copy of the H.265 bitstream field. More...

NvMediaRefSurface *	RefPics [16]
	Holds the surface that contains the reference image. More...

int32_t	PicOrderCntVal [16]

uint8_t	IsLongTerm [16]
	1 = long-term reference. More...

int8_t	RefPicSetStCurrBefore [8]

int8_t	RefPicSetStCurrAfter [8]

int8_t	RefPicSetLtCurr [8]

uint8_t	ScalingList4x4 [6][16]
	Holds a copy of the H.265 bitstream field. More...

uint8_t	ScalingList8x8 [6][64]
	Holds a copy of the H.265 bitstream field. More...

uint8_t	ScalingList16x16 [6][64]
	Holds a copy of the H.265 bitstream field. More...

uint8_t	ScalingList32x32 [2][64]
	Holds a copy of the H.265 bitstream field. More...

uint8_t	ScalingListDCCoeff16x16 [6]
	Holds a copy of the H.265 bitstream field. More...

uint8_t	ScalingListDCCoeff32x32 [2]
	Holds a copy of the H.265 bitstream field. More...

uint32_t	NumDeltaPocs [64]
	Holds a copy of the H.265 bitstream field. More...

uint8_t	sps_range_extension_present_flag

uint8_t	transformSkipRotationEnableFlag
	Holds the SPS extension for transform_skip_rotation_enabled_flag. More...

uint8_t	transformSkipContextEnableFlag
	Holds the SPS extension for transform_skip_context_enabled_flag. More...

uint8_t	implicitRdpcmEnableFlag
	Holds the SPS implicit_rdpcm_enabled_flag. More...

uint8_t	explicitRdpcmEnableFlag
	Holds the SPS explicit_rdpcm_enabled_flag. More...

uint8_t	extendedPrecisionProcessingFlag
	Holds the SPS extended_precision_processing_flag; always 0 in current profile. More...

uint8_t	intraSmoothingDisabledFlag
	Holds the SPS intra_smoothing_disabled_flag. More...

uint8_t	highPrecisionOffsetsEnableFlag
	Holds the SPS high_precision_offsets_enabled_flag. More...

uint8_t	fastRiceAdaptationEnableFlag
	Holds the SPS fast_rice_adaptation_enabled_flag. More...

uint8_t	cabacBypassAlignmentEnableFlag
	Holds the SPS cabac_bypass_alignment_enabled_flag; always 0 in current profile. More...

uint8_t	intraBlockCopyEnableFlag
	Holds the SPS intraBlockCopyEnableFlag; always 0 not currently used by the spec. More...

uint8_t	pps_range_extension_present_flag

uint8_t	log2MaxTransformSkipSize
	Holds the PPS extension log2_max_transform_skip_block_size_minus2, 0...5. More...

uint8_t	crossComponentPredictionEnableFlag
	Holds the PPS cross_component_prediction_enabled_flag. More...

uint8_t	chromaQpAdjustmentEnableFlag
	Holds the PPS chroma_qp_adjustment_enabled_flag . More...

uint8_t	diffCuChromaQpAdjustmentDepth
	Holds the PPS diff_cu_chroma_qp_adjustment_depth, 0...3. More...

uint8_t	chromaQpAdjustmentTableSize
	Holds the PPS chroma_qp_adjustment_table_size_minus1+1, 1...6. More...

uint8_t	log2SaoOffsetScaleLuma
	Holds the PPS log2_sao_offset_scale_luma, max(0,bitdepth-10), maxBitdepth 16 for future. More...

uint8_t	log2SaoOffsetScaleChroma
	Holds the PPS log2_sao_offset_scale_chroma. More...

int8_t	cb_qp_adjustment [6]
	Holds -[12,+12]. More...

int8_t	cr_qp_adjustment [6]
	Holds -[12,+12]. More...

uint8_t	reserved2
	Ensures alignment to 4 bytes. More...

uint8_t	frameType
	0:FrameType_B 1:FrameType_P 2:FrameType_I More...

uint8_t	masterin_display_data_present
	Parser Only: Flag to indicated mastering display data is present. More...

NvMediaMasteringDisplayData	MasteringDispData
	Parser Only: Mastering display data if present. More...

uint32_t	bSliceDecEnable
	Flag to indicate slice decode is enabled. More...

NvMediaSliceDecodeData	sliceDecData
	Slice decode data when Slice decode is enabled. More...

struct {
uint32_t mv_hevc_enable
	Indicates hecv-mv is present in the stream. More...

uint32_t nuh_layer_id
	Holds a copy of the H.265-MV bitstream field. More...

uint32_t default_ref_layers_active_flag
	Holds a copy of the H.265-MV bitstream field. More...

uint32_t NumDirectRefLayers
	Holds a copy of the H.265-MV bitstream field. More...

uint32_t max_one_active_ref_layer_flag
	Holds a copy of the H.265-MV bitstream field. More...

uint32_t NumActiveRefLayerPics
	Holds a copy of the H.265-MV bitstream field. More...

uint32_t poc_lsb_not_present_flag
	Holds a copy of the H.265-MV bitstream field. More...

uint32_t NumActiveRefLayerPics0
	Holds a copy of the H.265-MV bitstream field. More...

uint32_t NumActiveRefLayerPics1
	Holds a copy of the H.265-MV bitstream field. More...

int32_t RefPicSetInterLayer0 [32]
	Holds a copy of the H.265-MV bitstream field. More...

int32_t RefPicSetInterLayer1 [32]
	Holds a copy of the H.265-MV bitstream field. More...

}	mvext
	Holds multiview video extensions. More...

uint32_t	content_light_level_info_present
	Parser Only: Flag to indicated content light level data is present. More...

NvMediaContentLightLevelInfo	ContentLightLevelInfo
	Parser Only: Content light level info data if present. More...

Field Documentation

◆ amp_enabled_flag

uint8_t NvMediaPictureInfoH265::amp_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 575 of file nvmedia_common_decode.h.

◆ bit_depth_chroma

uint8_t NvMediaPictureInfoH265::bit_depth_chroma

Holds a copy of the H.265 bitstream field.

Definition at line 561 of file nvmedia_common_decode.h.

◆ bit_depth_luma

uint8_t NvMediaPictureInfoH265::bit_depth_luma

Holds a copy of the H.265 bitstream field.

Definition at line 559 of file nvmedia_common_decode.h.

◆ bSliceDecEnable

uint32_t NvMediaPictureInfoH265::bSliceDecEnable

Flag to indicate slice decode is enabled.

Definition at line 778 of file nvmedia_common_decode.h.

◆ cabac_init_present_flag

uint8_t NvMediaPictureInfoH265::cabac_init_present_flag

Holds a copy of the H.265 bitstream field.

Definition at line 647 of file nvmedia_common_decode.h.

◆ cabacBypassAlignmentEnableFlag

uint8_t NvMediaPictureInfoH265::cabacBypassAlignmentEnableFlag

Holds the SPS cabac_bypass_alignment_enabled_flag; always 0 in current profile.

Definition at line 744 of file nvmedia_common_decode.h.

◆ cb_qp_adjustment

int8_t NvMediaPictureInfoH265::cb_qp_adjustment[6]

Holds -[12,+12].

Definition at line 765 of file nvmedia_common_decode.h.

◆ chroma_format_idc

uint8_t NvMediaPictureInfoH265::chroma_format_idc

Holds a copy of the chroma_format_idc.

Definition at line 595 of file nvmedia_common_decode.h.

◆ chromaQpAdjustmentEnableFlag

uint8_t NvMediaPictureInfoH265::chromaQpAdjustmentEnableFlag

Holds the PPS chroma_qp_adjustment_enabled_flag .

Definition at line 755 of file nvmedia_common_decode.h.

◆ chromaQpAdjustmentTableSize

uint8_t NvMediaPictureInfoH265::chromaQpAdjustmentTableSize

Holds the PPS chroma_qp_adjustment_table_size_minus1+1, 1...6.

Definition at line 759 of file nvmedia_common_decode.h.

◆ column_width_minus1

uint16_t NvMediaPictureInfoH265::column_width_minus1[22]

Holds a copy of the H.265 bitstream field.

Definition at line 671 of file nvmedia_common_decode.h.

◆ constrained_intra_pred_flag

uint8_t NvMediaPictureInfoH265::constrained_intra_pred_flag

Holds a copy of the H.265 bitstream field.

Definition at line 618 of file nvmedia_common_decode.h.

◆ content_light_level_info_present

uint32_t NvMediaPictureInfoH265::content_light_level_info_present

Parser Only: Flag to indicated content light level data is present.

Definition at line 808 of file nvmedia_common_decode.h.

◆ ContentLightLevelInfo

NvMediaContentLightLevelInfo NvMediaPictureInfoH265::ContentLightLevelInfo

Parser Only: Content light level info data if present.

Definition at line 810 of file nvmedia_common_decode.h.

◆ cr_qp_adjustment

int8_t NvMediaPictureInfoH265::cr_qp_adjustment[6]

Holds -[12,+12].

Definition at line 767 of file nvmedia_common_decode.h.

◆ crossComponentPredictionEnableFlag

uint8_t NvMediaPictureInfoH265::crossComponentPredictionEnableFlag

Holds the PPS cross_component_prediction_enabled_flag.

Definition at line 753 of file nvmedia_common_decode.h.

◆ cu_qp_delta_enabled_flag

uint8_t NvMediaPictureInfoH265::cu_qp_delta_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 607 of file nvmedia_common_decode.h.

◆ CurrPicOrderCntVal

int32_t NvMediaPictureInfoH265::CurrPicOrderCntVal

Holds a copy of the H.265 bitstream field.

Definition at line 695 of file nvmedia_common_decode.h.

◆ deblocking_filter_control_present_flag

uint8_t NvMediaPictureInfoH265::deblocking_filter_control_present_flag

Holds a copy of the H.265 bitstream field.

Definition at line 652 of file nvmedia_common_decode.h.

◆ deblocking_filter_override_enabled_flag

uint8_t NvMediaPictureInfoH265::deblocking_filter_override_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 654 of file nvmedia_common_decode.h.

◆ default_ref_layers_active_flag

uint32_t NvMediaPictureInfoH265::default_ref_layers_active_flag

Holds a copy of the H.265-MV bitstream field.

Definition at line 789 of file nvmedia_common_decode.h.

◆ dependent_slice_segments_enabled_flag

uint8_t NvMediaPictureInfoH265::dependent_slice_segments_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 601 of file nvmedia_common_decode.h.

◆ diff_cu_qp_delta_depth

uint8_t NvMediaPictureInfoH265::diff_cu_qp_delta_depth

Holds a copy of the H.265 bitstream field.

Definition at line 609 of file nvmedia_common_decode.h.

◆ diffCuChromaQpAdjustmentDepth

uint8_t NvMediaPictureInfoH265::diffCuChromaQpAdjustmentDepth

Holds the PPS diff_cu_chroma_qp_adjustment_depth, 0...3.

Definition at line 757 of file nvmedia_common_decode.h.

◆ entropy_coding_sync_enabled_flag

uint8_t NvMediaPictureInfoH265::entropy_coding_sync_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 628 of file nvmedia_common_decode.h.

◆ explicitRdpcmEnableFlag

uint8_t NvMediaPictureInfoH265::explicitRdpcmEnableFlag

Holds the SPS explicit_rdpcm_enabled_flag.

Definition at line 734 of file nvmedia_common_decode.h.

◆ extendedPrecisionProcessingFlag

uint8_t NvMediaPictureInfoH265::extendedPrecisionProcessingFlag

Holds the SPS extended_precision_processing_flag; always 0 in current profile.

Definition at line 736 of file nvmedia_common_decode.h.

◆ fastRiceAdaptationEnableFlag

uint8_t NvMediaPictureInfoH265::fastRiceAdaptationEnableFlag

Holds the SPS fast_rice_adaptation_enabled_flag.

Definition at line 742 of file nvmedia_common_decode.h.

◆ frameType

uint8_t NvMediaPictureInfoH265::frameType

0:FrameType_B 1:FrameType_P 2:FrameType_I

Definition at line 771 of file nvmedia_common_decode.h.

◆ highPrecisionOffsetsEnableFlag

uint8_t NvMediaPictureInfoH265::highPrecisionOffsetsEnableFlag

Holds the SPS high_precision_offsets_enabled_flag.

Definition at line 740 of file nvmedia_common_decode.h.

◆ iCur

uint32_t NvMediaPictureInfoH265::iCur

Holds a copy of the H.265 bitstream field.

Definition at line 677 of file nvmedia_common_decode.h.

◆ IDRPicFlag

uint32_t NvMediaPictureInfoH265::IDRPicFlag

Holds a copy of the H.265 bitstream field.

Definition at line 679 of file nvmedia_common_decode.h.

◆ implicitRdpcmEnableFlag

uint8_t NvMediaPictureInfoH265::implicitRdpcmEnableFlag

Holds the SPS implicit_rdpcm_enabled_flag.

Definition at line 732 of file nvmedia_common_decode.h.

◆ init_qp_minus26

int8_t NvMediaPictureInfoH265::init_qp_minus26

Holds a copy of the H.265 bitstream field.

Definition at line 611 of file nvmedia_common_decode.h.

◆ intraBlockCopyEnableFlag

uint8_t NvMediaPictureInfoH265::intraBlockCopyEnableFlag

Holds the SPS intraBlockCopyEnableFlag; always 0 not currently used by the spec.

Definition at line 746 of file nvmedia_common_decode.h.

◆ intraSmoothingDisabledFlag

uint8_t NvMediaPictureInfoH265::intraSmoothingDisabledFlag

Holds the SPS intra_smoothing_disabled_flag.

Definition at line 738 of file nvmedia_common_decode.h.

◆ IsLongTerm

uint8_t NvMediaPictureInfoH265::IsLongTerm[16]

1 = long-term reference.

Definition at line 703 of file nvmedia_common_decode.h.

◆ lists_modification_present_flag

uint8_t NvMediaPictureInfoH265::lists_modification_present_flag

Holds a copy of the H.265 bitstream field.

Definition at line 645 of file nvmedia_common_decode.h.

◆ log2_diff_max_min_luma_coding_block_size

uint8_t NvMediaPictureInfoH265::log2_diff_max_min_luma_coding_block_size

Holds a copy of the H.265 bitstream field.

Definition at line 547 of file nvmedia_common_decode.h.

◆ log2_diff_max_min_pcm_luma_coding_block_size

uint8_t NvMediaPictureInfoH265::log2_diff_max_min_pcm_luma_coding_block_size

Holds a copy of the H.265 bitstream field.

Definition at line 557 of file nvmedia_common_decode.h.

◆ log2_diff_max_min_transform_block_size

uint8_t NvMediaPictureInfoH265::log2_diff_max_min_transform_block_size

Holds a copy of the H.265 bitstream field.

Definition at line 551 of file nvmedia_common_decode.h.

◆ log2_max_pic_order_cnt_lsb_minus4

uint8_t NvMediaPictureInfoH265::log2_max_pic_order_cnt_lsb_minus4

Holds a copy of the H.265 bitstream field.

Definition at line 579 of file nvmedia_common_decode.h.

◆ log2_min_luma_coding_block_size_minus3

uint8_t NvMediaPictureInfoH265::log2_min_luma_coding_block_size_minus3

Holds a copy of the H.265 bitstream field.

Definition at line 545 of file nvmedia_common_decode.h.

◆ log2_min_pcm_luma_coding_block_size_minus3

uint8_t NvMediaPictureInfoH265::log2_min_pcm_luma_coding_block_size_minus3

Holds a copy of the H.265 bitstream field.

Definition at line 555 of file nvmedia_common_decode.h.

◆ log2_min_transform_block_size_minus2

uint8_t NvMediaPictureInfoH265::log2_min_transform_block_size_minus2

Holds a copy of the H.265 bitstream field.

Definition at line 549 of file nvmedia_common_decode.h.

◆ log2_parallel_merge_level_minus2

uint8_t NvMediaPictureInfoH265::log2_parallel_merge_level_minus2

Holds a copy of the H.265 bitstream field.

Definition at line 630 of file nvmedia_common_decode.h.

◆ log2MaxTransformSkipSize

uint8_t NvMediaPictureInfoH265::log2MaxTransformSkipSize

Holds the PPS extension log2_max_transform_skip_block_size_minus2, 0...5.

Definition at line 751 of file nvmedia_common_decode.h.

◆ log2SaoOffsetScaleChroma

uint8_t NvMediaPictureInfoH265::log2SaoOffsetScaleChroma

Holds the PPS log2_sao_offset_scale_chroma.

Definition at line 763 of file nvmedia_common_decode.h.

◆ log2SaoOffsetScaleLuma

uint8_t NvMediaPictureInfoH265::log2SaoOffsetScaleLuma

Holds the PPS log2_sao_offset_scale_luma, max(0,bitdepth-10), maxBitdepth 16 for future.

Definition at line 761 of file nvmedia_common_decode.h.

◆ long_term_ref_pics_present_flag

uint8_t NvMediaPictureInfoH265::long_term_ref_pics_present_flag

Holds a copy of the H.265 bitstream field.

Definition at line 585 of file nvmedia_common_decode.h.

◆ loop_filter_across_slices_enabled_flag

uint8_t NvMediaPictureInfoH265::loop_filter_across_slices_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 637 of file nvmedia_common_decode.h.

◆ loop_filter_across_tiles_enabled_flag

uint8_t NvMediaPictureInfoH265::loop_filter_across_tiles_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 635 of file nvmedia_common_decode.h.

◆ masterin_display_data_present

uint8_t NvMediaPictureInfoH265::masterin_display_data_present

Parser Only: Flag to indicated mastering display data is present.

Definition at line 774 of file nvmedia_common_decode.h.

◆ MasteringDispData

NvMediaMasteringDisplayData NvMediaPictureInfoH265::MasteringDispData

Parser Only: Mastering display data if present.

Definition at line 776 of file nvmedia_common_decode.h.

◆ max_one_active_ref_layer_flag

uint32_t NvMediaPictureInfoH265::max_one_active_ref_layer_flag

Holds a copy of the H.265-MV bitstream field.

Definition at line 793 of file nvmedia_common_decode.h.

◆ max_transform_hierarchy_depth_inter

uint8_t NvMediaPictureInfoH265::max_transform_hierarchy_depth_inter

Holds a copy of the H.265 bitstream field.

Definition at line 573 of file nvmedia_common_decode.h.

◆ max_transform_hierarchy_depth_intra

uint8_t NvMediaPictureInfoH265::max_transform_hierarchy_depth_intra

Holds a copy of the H.265 bitstream field.

Definition at line 571 of file nvmedia_common_decode.h.

◆ mv_hevc_enable

uint32_t NvMediaPictureInfoH265::mv_hevc_enable

Indicates hecv-mv is present in the stream.

Definition at line 785 of file nvmedia_common_decode.h.

◆ mvext

struct { ... } NvMediaPictureInfoH265::mvext

Holds multiview video extensions.

◆ nuh_layer_id

uint32_t NvMediaPictureInfoH265::nuh_layer_id

Holds a copy of the H.265-MV bitstream field.

Definition at line 787 of file nvmedia_common_decode.h.

◆ num_extra_slice_header_bits

uint8_t NvMediaPictureInfoH265::num_extra_slice_header_bits

Holds a copy of the H.265 bitstream field.

Definition at line 632 of file nvmedia_common_decode.h.

◆ num_long_term_ref_pics_sps

uint8_t NvMediaPictureInfoH265::num_long_term_ref_pics_sps

Holds a copy of the H.265 bitstream field.

Definition at line 587 of file nvmedia_common_decode.h.

◆ num_ref_idx_l0_default_active_minus1

uint8_t NvMediaPictureInfoH265::num_ref_idx_l0_default_active_minus1

Holds a copy of the H.265 bitstream field.

Definition at line 641 of file nvmedia_common_decode.h.

◆ num_ref_idx_l1_default_active_minus1

uint8_t NvMediaPictureInfoH265::num_ref_idx_l1_default_active_minus1

Holds a copy of the H.265 bitstream field.

Definition at line 643 of file nvmedia_common_decode.h.

◆ num_short_term_ref_pic_sets

uint8_t NvMediaPictureInfoH265::num_short_term_ref_pic_sets

Holds a copy of the H.265 bitstream field.

Definition at line 583 of file nvmedia_common_decode.h.

◆ num_tile_columns_minus1

uint8_t NvMediaPictureInfoH265::num_tile_columns_minus1

Holds a copy of the H.265 bitstream field.

Definition at line 666 of file nvmedia_common_decode.h.

◆ num_tile_rows_minus1

uint8_t NvMediaPictureInfoH265::num_tile_rows_minus1

Holds a copy of the H.265 bitstream field.

Definition at line 668 of file nvmedia_common_decode.h.

◆ NumActiveRefLayerPics

uint32_t NvMediaPictureInfoH265::NumActiveRefLayerPics

Holds a copy of the H.265-MV bitstream field.

Definition at line 795 of file nvmedia_common_decode.h.

◆ NumActiveRefLayerPics0

uint32_t NvMediaPictureInfoH265::NumActiveRefLayerPics0

Holds a copy of the H.265-MV bitstream field.

Definition at line 799 of file nvmedia_common_decode.h.

◆ NumActiveRefLayerPics1

uint32_t NvMediaPictureInfoH265::NumActiveRefLayerPics1

Holds a copy of the H.265-MV bitstream field.

Definition at line 801 of file nvmedia_common_decode.h.

◆ NumBitsToSkip

uint32_t NvMediaPictureInfoH265::NumBitsToSkip

Holds a copy of the H.265 bitstream field.

Definition at line 693 of file nvmedia_common_decode.h.

◆ NumDeltaPocs

uint32_t NvMediaPictureInfoH265::NumDeltaPocs[64]

Holds a copy of the H.265 bitstream field.

Definition at line 723 of file nvmedia_common_decode.h.

◆ NumDeltaPocsOfRefRpsIdx

uint32_t NvMediaPictureInfoH265::NumDeltaPocsOfRefRpsIdx

Holds a copy of the H.265 bitstream field.

Definition at line 683 of file nvmedia_common_decode.h.

◆ NumDirectRefLayers

uint32_t NvMediaPictureInfoH265::NumDirectRefLayers

Holds a copy of the H.265-MV bitstream field.

Definition at line 791 of file nvmedia_common_decode.h.

◆ NumPocLtCurr

uint32_t NvMediaPictureInfoH265::NumPocLtCurr

Holds a copy of the H.265 bitstream field.

Definition at line 691 of file nvmedia_common_decode.h.

◆ NumPocStCurrAfter

uint32_t NvMediaPictureInfoH265::NumPocStCurrAfter

Holds a copy of the H.265 bitstream field.

Definition at line 689 of file nvmedia_common_decode.h.

◆ NumPocStCurrBefore

uint32_t NvMediaPictureInfoH265::NumPocStCurrBefore

Holds a copy of the H.265 bitstream field.

Definition at line 687 of file nvmedia_common_decode.h.

◆ NumPocTotalCurr

uint32_t NvMediaPictureInfoH265::NumPocTotalCurr

Holds a copy of the H.265 bitstream field.

Definition at line 685 of file nvmedia_common_decode.h.

◆ output_flag_present_flag

uint8_t NvMediaPictureInfoH265::output_flag_present_flag

Holds a copy of the H.265 bitstream field.

Definition at line 639 of file nvmedia_common_decode.h.

◆ pcm_enabled_flag

uint8_t NvMediaPictureInfoH265::pcm_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 553 of file nvmedia_common_decode.h.

◆ pcm_loop_filter_disabled_flag

uint8_t NvMediaPictureInfoH265::pcm_loop_filter_disabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 567 of file nvmedia_common_decode.h.

◆ pcm_sample_bit_depth_chroma_minus1

uint8_t NvMediaPictureInfoH265::pcm_sample_bit_depth_chroma_minus1

Holds a copy of the H.265 bitstream field.

Definition at line 565 of file nvmedia_common_decode.h.

◆ pcm_sample_bit_depth_luma_minus1

uint8_t NvMediaPictureInfoH265::pcm_sample_bit_depth_luma_minus1

Holds a copy of the H.265 bitstream field.

Definition at line 563 of file nvmedia_common_decode.h.

◆ pic_height_in_luma_samples

uint32_t NvMediaPictureInfoH265::pic_height_in_luma_samples

Holds a copy of the H.265 bitstream field.

Definition at line 543 of file nvmedia_common_decode.h.

◆ pic_width_in_luma_samples

uint32_t NvMediaPictureInfoH265::pic_width_in_luma_samples

Holds a copy of the H.265 bitstream field.

Definition at line 541 of file nvmedia_common_decode.h.

◆ PicOrderCntVal

int32_t NvMediaPictureInfoH265::PicOrderCntVal[16]

Definition at line 701 of file nvmedia_common_decode.h.

◆ poc_lsb_not_present_flag

uint32_t NvMediaPictureInfoH265::poc_lsb_not_present_flag

Holds a copy of the H.265-MV bitstream field.

Definition at line 797 of file nvmedia_common_decode.h.

◆ pps_beta_offset_div2

int8_t NvMediaPictureInfoH265::pps_beta_offset_div2

Holds a copy of the H.265 bitstream field.

Definition at line 658 of file nvmedia_common_decode.h.

◆ pps_cb_qp_offset

int8_t NvMediaPictureInfoH265::pps_cb_qp_offset

Holds a copy of the H.265 bitstream field.

Definition at line 613 of file nvmedia_common_decode.h.

◆ pps_cr_qp_offset

int8_t NvMediaPictureInfoH265::pps_cr_qp_offset

Holds a copy of the H.265 bitstream field.

Definition at line 615 of file nvmedia_common_decode.h.

◆ pps_deblocking_filter_disabled_flag

uint8_t NvMediaPictureInfoH265::pps_deblocking_filter_disabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 656 of file nvmedia_common_decode.h.

◆ pps_range_extension_present_flag

uint8_t NvMediaPictureInfoH265::pps_range_extension_present_flag

Definition at line 748 of file nvmedia_common_decode.h.

◆ pps_slice_chroma_qp_offsets_present_flag

uint8_t NvMediaPictureInfoH265::pps_slice_chroma_qp_offsets_present_flag

Holds a copy of the H.265 bitstream field.

Definition at line 649 of file nvmedia_common_decode.h.

◆ pps_tc_offset_div2

int8_t NvMediaPictureInfoH265::pps_tc_offset_div2

Holds a copy of the H.265 bitstream field.

Definition at line 660 of file nvmedia_common_decode.h.

◆ RAPPicFlag

uint32_t NvMediaPictureInfoH265::RAPPicFlag

Holds a copy of the H.265 bitstream field.

Definition at line 681 of file nvmedia_common_decode.h.

◆ RefPics

NvMediaRefSurface* NvMediaPictureInfoH265::RefPics[16]

Holds the surface that contains the reference image.

Set to NULL for unused entries.

Definition at line 700 of file nvmedia_common_decode.h.

◆ RefPicSetInterLayer0

int32_t NvMediaPictureInfoH265::RefPicSetInterLayer0[32]

Holds a copy of the H.265-MV bitstream field.

Definition at line 803 of file nvmedia_common_decode.h.

◆ RefPicSetInterLayer1

int32_t NvMediaPictureInfoH265::RefPicSetInterLayer1[32]

Holds a copy of the H.265-MV bitstream field.

Definition at line 805 of file nvmedia_common_decode.h.

◆ RefPicSetLtCurr

int8_t NvMediaPictureInfoH265::RefPicSetLtCurr[8]

Definition at line 706 of file nvmedia_common_decode.h.

◆ RefPicSetStCurrAfter

int8_t NvMediaPictureInfoH265::RefPicSetStCurrAfter[8]

Definition at line 705 of file nvmedia_common_decode.h.

◆ RefPicSetStCurrBefore

int8_t NvMediaPictureInfoH265::RefPicSetStCurrBefore[8]

Definition at line 704 of file nvmedia_common_decode.h.

◆ reserved1

uint8_t NvMediaPictureInfoH265::reserved1[3]

Holds a copy of the H.265 bitstream field.

Definition at line 597 of file nvmedia_common_decode.h.

◆ reserved2

uint8_t NvMediaPictureInfoH265::reserved2

Ensures alignment to 4 bytes.

Definition at line 769 of file nvmedia_common_decode.h.

◆ row_height_minus1

uint16_t NvMediaPictureInfoH265::row_height_minus1[20]

Holds a copy of the H.265 bitstream field.

Definition at line 673 of file nvmedia_common_decode.h.

◆ sample_adaptive_offset_enabled_flag

uint8_t NvMediaPictureInfoH265::sample_adaptive_offset_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 591 of file nvmedia_common_decode.h.

◆ scaling_list_enable_flag

uint8_t NvMediaPictureInfoH265::scaling_list_enable_flag

Holds a copy of the H.265 bitstream field.

Definition at line 593 of file nvmedia_common_decode.h.

◆ ScalingList16x16

uint8_t NvMediaPictureInfoH265::ScalingList16x16[6][64]

Holds a copy of the H.265 bitstream field.

[matrixId][i]

Definition at line 714 of file nvmedia_common_decode.h.

◆ ScalingList32x32

uint8_t NvMediaPictureInfoH265::ScalingList32x32[2][64]

Holds a copy of the H.265 bitstream field.

[matrixId][i]

Definition at line 716 of file nvmedia_common_decode.h.

◆ ScalingList4x4

uint8_t NvMediaPictureInfoH265::ScalingList4x4[6][16]

Holds a copy of the H.265 bitstream field.

[matrixId][i]

Definition at line 710 of file nvmedia_common_decode.h.

◆ ScalingList8x8

uint8_t NvMediaPictureInfoH265::ScalingList8x8[6][64]

Holds a copy of the H.265 bitstream field.

[matrixId][i]

Definition at line 712 of file nvmedia_common_decode.h.

◆ ScalingListDCCoeff16x16

uint8_t NvMediaPictureInfoH265::ScalingListDCCoeff16x16[6]

Holds a copy of the H.265 bitstream field.

[matrixId]

Definition at line 718 of file nvmedia_common_decode.h.

◆ ScalingListDCCoeff32x32

uint8_t NvMediaPictureInfoH265::ScalingListDCCoeff32x32[2]

Holds a copy of the H.265 bitstream field.

[matrixId]

Definition at line 720 of file nvmedia_common_decode.h.

◆ separate_colour_plane_flag

uint8_t NvMediaPictureInfoH265::separate_colour_plane_flag

Holds a copy of the H.265 bitstream field.

Definition at line 577 of file nvmedia_common_decode.h.

◆ sign_data_hiding_enabled_flag

uint8_t NvMediaPictureInfoH265::sign_data_hiding_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 605 of file nvmedia_common_decode.h.

◆ slice_segment_header_extension_present_flag

uint8_t NvMediaPictureInfoH265::slice_segment_header_extension_present_flag

Holds a copy of the H.265 bitstream field.

Definition at line 603 of file nvmedia_common_decode.h.

◆ sliceDecData

NvMediaSliceDecodeData NvMediaPictureInfoH265::sliceDecData

Slice decode data when Slice decode is enabled.

Definition at line 780 of file nvmedia_common_decode.h.

◆ sps_range_extension_present_flag

uint8_t NvMediaPictureInfoH265::sps_range_extension_present_flag

Definition at line 725 of file nvmedia_common_decode.h.

◆ sps_temporal_mvp_enabled_flag

uint8_t NvMediaPictureInfoH265::sps_temporal_mvp_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 589 of file nvmedia_common_decode.h.

◆ strong_intra_smoothing_enabled_flag

uint8_t NvMediaPictureInfoH265::strong_intra_smoothing_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 569 of file nvmedia_common_decode.h.

◆ tiles_enabled_flag

uint8_t NvMediaPictureInfoH265::tiles_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 662 of file nvmedia_common_decode.h.

◆ transform_skip_enabled_flag

uint8_t NvMediaPictureInfoH265::transform_skip_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 624 of file nvmedia_common_decode.h.

◆ transformSkipContextEnableFlag

uint8_t NvMediaPictureInfoH265::transformSkipContextEnableFlag

Holds the SPS extension for transform_skip_context_enabled_flag.

Definition at line 730 of file nvmedia_common_decode.h.

◆ transformSkipRotationEnableFlag

uint8_t NvMediaPictureInfoH265::transformSkipRotationEnableFlag

Holds the SPS extension for transform_skip_rotation_enabled_flag.

Definition at line 728 of file nvmedia_common_decode.h.

◆ transquant_bypass_enabled_flag

uint8_t NvMediaPictureInfoH265::transquant_bypass_enabled_flag

Holds a copy of the H.265 bitstream field.

Definition at line 626 of file nvmedia_common_decode.h.

◆ uniform_spacing_flag

uint8_t NvMediaPictureInfoH265::uniform_spacing_flag

Holds a copy of the H.265 bitstream field.

Definition at line 664 of file nvmedia_common_decode.h.

◆ weighted_bipred_flag

uint8_t NvMediaPictureInfoH265::weighted_bipred_flag

Holds a copy of the H.265 bitstream field.

Definition at line 622 of file nvmedia_common_decode.h.

◆ weighted_pred_flag

uint8_t NvMediaPictureInfoH265::weighted_pred_flag

Holds a copy of the H.265 bitstream field.

Definition at line 620 of file nvmedia_common_decode.h.

The documentation for this struct was generated from the following file:

nvmedia_common_decode.h


NVIDIA DRIVE OS Linux SDK API Reference	6.0.9 Release

NVIDIA DRIVE OS Linux SDK API Reference

6.0.9 Release

Detailed Description

Data Fields

Field Documentation

◆ amp_enabled_flag

◆ bit_depth_chroma

◆ bit_depth_luma

◆ bSliceDecEnable

◆ cabac_init_present_flag

◆ cabacBypassAlignmentEnableFlag

◆ cb_qp_adjustment

◆ chroma_format_idc

◆ chromaQpAdjustmentEnableFlag

◆ chromaQpAdjustmentTableSize

◆ column_width_minus1

◆ constrained_intra_pred_flag

◆ content_light_level_info_present

◆ ContentLightLevelInfo

◆ cr_qp_adjustment

◆ crossComponentPredictionEnableFlag

◆ cu_qp_delta_enabled_flag

◆ CurrPicOrderCntVal

◆ deblocking_filter_control_present_flag

◆ deblocking_filter_override_enabled_flag

◆ default_ref_layers_active_flag

◆ dependent_slice_segments_enabled_flag

◆ diff_cu_qp_delta_depth

◆ diffCuChromaQpAdjustmentDepth

◆ entropy_coding_sync_enabled_flag

◆ explicitRdpcmEnableFlag

◆ extendedPrecisionProcessingFlag

◆ fastRiceAdaptationEnableFlag

◆ frameType

◆ highPrecisionOffsetsEnableFlag

◆ iCur

◆ IDRPicFlag

◆ implicitRdpcmEnableFlag

◆ init_qp_minus26

◆ intraBlockCopyEnableFlag

◆ intraSmoothingDisabledFlag

◆ IsLongTerm

◆ lists_modification_present_flag

◆ log2_diff_max_min_luma_coding_block_size

◆ log2_diff_max_min_pcm_luma_coding_block_size

◆ log2_diff_max_min_transform_block_size

◆ log2_max_pic_order_cnt_lsb_minus4

◆ log2_min_luma_coding_block_size_minus3

◆ log2_min_pcm_luma_coding_block_size_minus3

◆ log2_min_transform_block_size_minus2

◆ log2_parallel_merge_level_minus2

◆ log2MaxTransformSkipSize

◆ log2SaoOffsetScaleChroma

◆ log2SaoOffsetScaleLuma

◆ long_term_ref_pics_present_flag

◆ loop_filter_across_slices_enabled_flag

◆ loop_filter_across_tiles_enabled_flag

◆ masterin_display_data_present

◆ MasteringDispData

◆ max_one_active_ref_layer_flag

◆ max_transform_hierarchy_depth_inter

◆ max_transform_hierarchy_depth_intra

◆ mv_hevc_enable

◆ mvext

◆ nuh_layer_id

◆ num_extra_slice_header_bits

◆ num_long_term_ref_pics_sps

◆ num_ref_idx_l0_default_active_minus1

◆ num_ref_idx_l1_default_active_minus1

◆ num_short_term_ref_pic_sets

◆ num_tile_columns_minus1

◆ num_tile_rows_minus1

◆ NumActiveRefLayerPics

◆ NumActiveRefLayerPics0

◆ NumActiveRefLayerPics1

◆ NumBitsToSkip

◆ NumDeltaPocs

◆ NumDeltaPocsOfRefRpsIdx

◆ NumDirectRefLayers

◆ NumPocLtCurr
