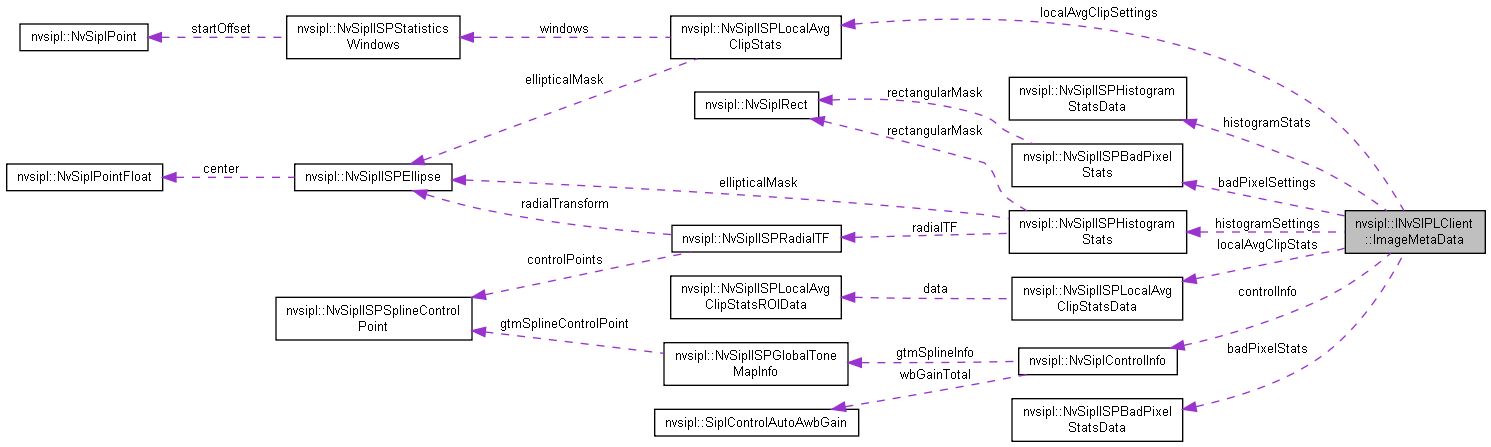

Defines the metadata associated with the image.
Definition at line 56 of file NvSIPLClient.hpp.
Data Fields | |
| uint64_t | frameCaptureTSC |
| Holds the TSC timestamp of the end of frame for capture. More... | |
| uint64_t | frameCaptureStartTSC |
| Holds the TSC timestamp of the start of frame for capture. More... | |
| uint32_t | numExposures |
| Holds the parsed embedded data frame number of exposures info for the captured frame. More... | |
| DevBlkCDIExposure | sensorExpInfo |
| Holds the parsed embedded data sensor exposure info for the captured frame. More... | |
| DevBlkCDIWhiteBalance | sensorWBInfo |
| Holds the parsed embedded data sensor white balance info for the captured frame. More... | |
| DevBlkCDIIllumination | illuminationInfo |
| Holds the parsed embedded data illumination info for the captured frame. More... | |
| DevBlkCDIPWL | sensorPWLInfo |
| Holds the parsed embedded data sensor PWL info for the captured frame. More... | |
| DevBlkCDICRC | sensorCRCInfo |
| Holds the parsed embedded data sensor crc info for the captured frame. More... | |
| DevBlkCDIFrameReport | sensorReportInfo |
| Holds the parsed embedded data frame report info for the captured frame. More... | |
| DevBlkCDITemperature | sensorTempInfo |
| Holds the parsed embedded data sensor temperature info for the captured frame. More... | |
| DevBlkCDIFrameSeqNum | frameSeqNumInfo |
| Holds the parsed embedded data frame sequence number info for the captured frame. More... | |
| bool | badPixelStatsValid |
| Holds a flag indicating if the ISP bad pixel statistics are valid. More... | |
| NvSiplISPBadPixelStatsData | badPixelStats |
| Holds the ISP bad pixel statistics for the previous ISP output frame. More... | |
| NvSiplISPBadPixelStats | badPixelSettings |
| Holds the ISP bad pixel settings for the previous ISP output frame. More... | |
| DevBlkCDIFrameTimestamp | frameTimestampInfo |
| Holds parsed embedded data frame timestamp info for the captured frame. More... | |
| bool | histogramStatsValid [2] |
| Holds a flag indicating if the ISP Histogram statistics are valid. More... | |
| NvSiplISPHistogramStatsData | histogramStats [2] |
| Holds the ISP Histogram statistics for the previous ISP output frame. More... | |
| NvSiplISPHistogramStats | histogramSettings [2] |
| Holds the ISP Histogram settings for the previous ISP output frame. More... | |
| bool | localAvgClipStatsValid [2] |
| Holds a flag indicating if the ISP Local Average and Clipped statistics are valid. More... | |
| NvSiplISPLocalAvgClipStatsData | localAvgClipStats [2] |
| Holds the ISP Local Average and Clipped statistics for the previous ISP output frame. More... | |
| NvSiplISPLocalAvgClipStats | localAvgClipSettings [2] |
| Holds the ISP Local Average and Clipped settings for the previous ISP output frame. More... | |
| int8_t | errorFlag |
| Holds information on errors present in the embedded data. More... | |
| NvSiplControlInfo | controlInfo |
| Holds the control information. More... | |
| NvSiplISPBadPixelStats nvsipl::INvSIPLClient::ImageMetaData::badPixelSettings |
Holds the ISP bad pixel settings for the previous ISP output frame.
Definition at line 85 of file NvSIPLClient.hpp.
| NvSiplISPBadPixelStatsData nvsipl::INvSIPLClient::ImageMetaData::badPixelStats |
Holds the ISP bad pixel statistics for the previous ISP output frame.
Definition at line 83 of file NvSIPLClient.hpp.
| bool nvsipl::INvSIPLClient::ImageMetaData::badPixelStatsValid |
Holds a flag indicating if the ISP bad pixel statistics are valid.
Definition at line 81 of file NvSIPLClient.hpp.
| NvSiplControlInfo nvsipl::INvSIPLClient::ImageMetaData::controlInfo |
Holds the control information.
Definition at line 106 of file NvSIPLClient.hpp.
| int8_t nvsipl::INvSIPLClient::ImageMetaData::errorFlag |
Holds information on errors present in the embedded data.
The meaning of these values is determined by the driver.
Definition at line 104 of file NvSIPLClient.hpp.
| uint64_t nvsipl::INvSIPLClient::ImageMetaData::frameCaptureStartTSC |
Holds the TSC timestamp of the start of frame for capture.
Definition at line 61 of file NvSIPLClient.hpp.
| uint64_t nvsipl::INvSIPLClient::ImageMetaData::frameCaptureTSC |
Holds the TSC timestamp of the end of frame for capture.
Definition at line 59 of file NvSIPLClient.hpp.
| DevBlkCDIFrameSeqNum nvsipl::INvSIPLClient::ImageMetaData::frameSeqNumInfo |
Holds the parsed embedded data frame sequence number info for the captured frame.
Definition at line 79 of file NvSIPLClient.hpp.
| DevBlkCDIFrameTimestamp nvsipl::INvSIPLClient::ImageMetaData::frameTimestampInfo |
Holds parsed embedded data frame timestamp info for the captured frame.
Definition at line 87 of file NvSIPLClient.hpp.
| NvSiplISPHistogramStats nvsipl::INvSIPLClient::ImageMetaData::histogramSettings[2] |
Holds the ISP Histogram settings for the previous ISP output frame.
Definition at line 95 of file NvSIPLClient.hpp.
| NvSiplISPHistogramStatsData nvsipl::INvSIPLClient::ImageMetaData::histogramStats[2] |
Holds the ISP Histogram statistics for the previous ISP output frame.
Definition at line 92 of file NvSIPLClient.hpp.
| bool nvsipl::INvSIPLClient::ImageMetaData::histogramStatsValid[2] |
Holds a flag indicating if the ISP Histogram statistics are valid.
Definition at line 90 of file NvSIPLClient.hpp.
| DevBlkCDIIllumination nvsipl::INvSIPLClient::ImageMetaData::illuminationInfo |
Holds the parsed embedded data illumination info for the captured frame.
Definition at line 69 of file NvSIPLClient.hpp.
| NvSiplISPLocalAvgClipStats nvsipl::INvSIPLClient::ImageMetaData::localAvgClipSettings[2] |
Holds the ISP Local Average and Clipped settings for the previous ISP output frame.
Definition at line 101 of file NvSIPLClient.hpp.
| NvSiplISPLocalAvgClipStatsData nvsipl::INvSIPLClient::ImageMetaData::localAvgClipStats[2] |
Holds the ISP Local Average and Clipped statistics for the previous ISP output frame.
Definition at line 99 of file NvSIPLClient.hpp.
| bool nvsipl::INvSIPLClient::ImageMetaData::localAvgClipStatsValid[2] |
Holds a flag indicating if the ISP Local Average and Clipped statistics are valid.
Definition at line 97 of file NvSIPLClient.hpp.
| uint32_t nvsipl::INvSIPLClient::ImageMetaData::numExposures |
Holds the parsed embedded data frame number of exposures info for the captured frame.
Definition at line 63 of file NvSIPLClient.hpp.
| DevBlkCDICRC nvsipl::INvSIPLClient::ImageMetaData::sensorCRCInfo |
Holds the parsed embedded data sensor crc info for the captured frame.
Definition at line 73 of file NvSIPLClient.hpp.
| DevBlkCDIExposure nvsipl::INvSIPLClient::ImageMetaData::sensorExpInfo |
Holds the parsed embedded data sensor exposure info for the captured frame.
Definition at line 65 of file NvSIPLClient.hpp.
| DevBlkCDIPWL nvsipl::INvSIPLClient::ImageMetaData::sensorPWLInfo |
Holds the parsed embedded data sensor PWL info for the captured frame.
Definition at line 71 of file NvSIPLClient.hpp.
| DevBlkCDIFrameReport nvsipl::INvSIPLClient::ImageMetaData::sensorReportInfo |
Holds the parsed embedded data frame report info for the captured frame.
Definition at line 75 of file NvSIPLClient.hpp.
| DevBlkCDITemperature nvsipl::INvSIPLClient::ImageMetaData::sensorTempInfo |
Holds the parsed embedded data sensor temperature info for the captured frame.
Definition at line 77 of file NvSIPLClient.hpp.
| DevBlkCDIWhiteBalance nvsipl::INvSIPLClient::ImageMetaData::sensorWBInfo |
Holds the parsed embedded data sensor white balance info for the captured frame.
Definition at line 67 of file NvSIPLClient.hpp.
