nvsipl::NvSiplISPRadialTF Struct Reference

Detailed Description

Defines a radial transform.

Definition at line 350 of file NvSIPLISPStat.hpp.

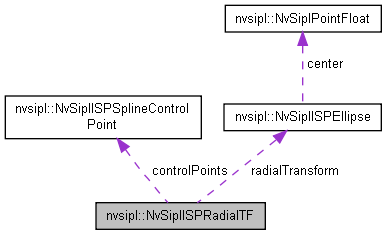

Collaboration diagram for nvsipl::NvSiplISPRadialTF:

Data Fields
NvSiplISPEllipse	radialTransform
	Holds ellipse for radial transform. More...
NvSiplISPSplineControlPoint	controlPoints [NVSIPL_ISP_RADTF_POINTS]
	Defines spline control point for radial transfer function. More...

Field Documentation

controlPoints

NvSiplISPSplineControlPoint nvsipl::NvSiplISPRadialTF::controlPoints[NVSIPL_ISP_RADTF_POINTS]

Defines spline control point for radial transfer function.

• Supported values for X coordinate of spline control point : [0.0, 2.0]
• Supported values for Y coordinate of spline control point : [0.0, 2.0]
• Supported values for slope of spline control point : $[-2^{16}, 2^{16}]$

Definition at line 370 of file NvSIPLISPStat.hpp.

radialTransform

NvSiplISPEllipse nvsipl::NvSiplISPRadialTF::radialTransform

Holds ellipse for radial transform.

Coordinates of image top left and bottom right points are (0, 0) & (width, height) respectively.

• Supported values for X coordinate of the center: [0, input width - 1]
• Supported values for Y coordinate of the center: [0, input height - 1]
• Supported values for horizontal axis: [17, 2 x input width]
• Supported values for vertical axis: [17, 2 x input height]
• Supported values for angle: [0.0, 360.0]

Definition at line 363 of file NvSIPLISPStat.hpp.

---

The documentation for this struct was generated from the following file:

• NvSIPLISPStat.hpp
