Detailed Description

Input parameters for processing AE/AWB.

Definition at line 246 of file NvSIPLControlAutoDef.hpp.

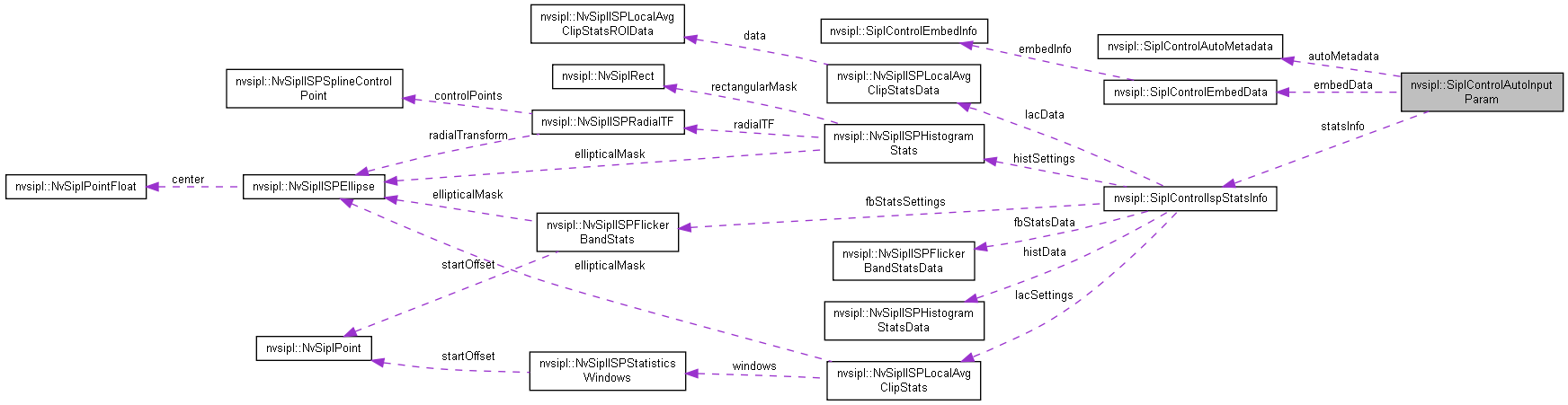

Collaboration diagram for nvsipl::SiplControlAutoInputParam:

[legend]

Data Fields
SiplControlEmbedData	embedData
	Embedded settings. More...

DevBlkCDISensorAttributes	sensorAttr
	Sensor attributes, DevBlkCDISensorAttributes is defined in NvSIPLCDICommon.h. More...

SiplControlIspStatsInfo	statsInfo
	Stats buffers and settings. More...

SiplControlAutoMetadata	autoMetadata
	Metadata info for algorithm. More...

Field Documentation

SiplControlAutoMetadata nvsipl::SiplControlAutoInputParam::autoMetadata

Metadata info for algorithm.

Definition at line 273 of file NvSIPLControlAutoDef.hpp.

SiplControlEmbedData nvsipl::SiplControlAutoInputParam::embedData

Embedded settings.

Definition at line 250 of file NvSIPLControlAutoDef.hpp.

DevBlkCDISensorAttributes nvsipl::SiplControlAutoInputParam::sensorAttr

Sensor attributes, DevBlkCDISensorAttributes is defined in NvSIPLCDICommon.h.

DevBlkCDISensorAttributes has 9 member variables:

sensorName, a string holds the name attribute. If not supported, set to '\0'.
sensorCFA, holds the CFA attribute. If not supported, set to zero.
sensorFuseId, holds the fuse ID attribute. If not supported, set to '\0'.
numActiveExposures, supported value [1, DEVBLK_CDI_MAX_EXPOSURES]
sensorExpRange {float min, float max} [DEVBLK_CDI_MAX_EXPOSURES], supported values: min [0.0, 100.0] max [min, 100.0]
sensorGainRange {float min, float max} [DEVBLK_CDI_MAX_EXPOSURES], supported values: min [0.0, 1000.0] max [min, 1000.0]
sensorWhiteBalanceRange {float min, float max}[DEVBLK_CDI_MAX_EXPOSURES], supported values: min [0.0, 1000.0] max [min, 1000.0]
sensorGainFactor, supported values : [0.0, 1000.0]
numFrameReportBytes, supported values: [1, DEVBLK_CDI_MAX_FRAME_REPORT_BYTES]

Definition at line 265 of file NvSIPLControlAutoDef.hpp.

SiplControlIspStatsInfo nvsipl::SiplControlAutoInputParam::statsInfo

Stats buffers and settings.

Definition at line 269 of file NvSIPLControlAutoDef.hpp.

The documentation for this struct was generated from the following file:
