Detailed Description

Structure containing ISP Stats information.

Definition at line 182 of file NvSIPLControlAutoDef.hpp.

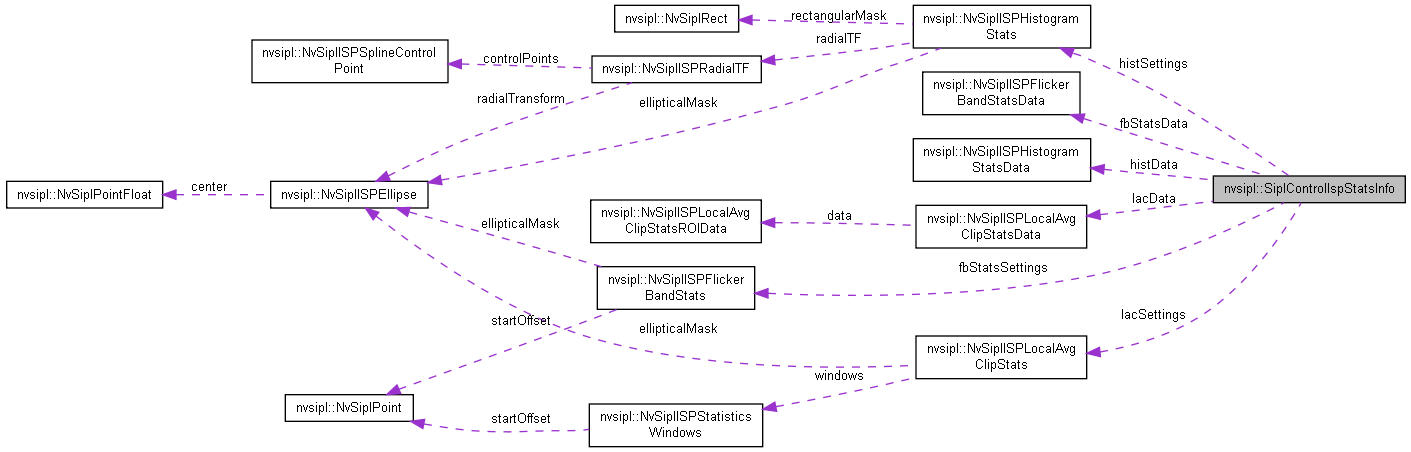

Collaboration diagram for nvsipl::SiplControlIspStatsInfo:

[legend]

Data Fields
const NvSiplISPLocalAvgClipStatsData *	lacData [2]
	Holds pointers to 2 LAC stats data, defined in NvSIPLISPStat.hpp. More...

const NvSiplISPLocalAvgClipStats *	lacSettings [2]
	Holds pointers to 2 LAC stats settings, defined in NvSIPLISPStat.hpp. More...

const NvSiplISPHistogramStatsData *	histData [2]
	Holds pointers to 2 Histogram stats data, defined in NvSIPLISPStat.hpp. More...

const NvSiplISPHistogramStats *	histSettings [2]
	Holds pointers to 2 Histogram stats settings, defined in NvSIPLISPStat.hpp. More...

const NvSiplISPFlickerBandStatsData *	fbStatsData
	Holds pointer to Flicker Band stats data, defined in NvSIPLISPStat.hpp. More...

const NvSiplISPFlickerBandStats *	fbStatsSettings
	Holds pointer to Flicker Band stats settings, defined in NvSIPLISPStat.hpp. More...

Field Documentation

const NvSiplISPFlickerBandStatsData* nvsipl::SiplControlIspStatsInfo::fbStatsData

Holds pointer to Flicker Band stats data, defined in NvSIPLISPStat.hpp.

This variable is not supported in SIPL Control Auto.

Definition at line 215 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPFlickerBandStats* nvsipl::SiplControlIspStatsInfo::fbStatsSettings

Holds pointer to Flicker Band stats settings, defined in NvSIPLISPStat.hpp.

This variable is not supported in SIPL Control Auto.

Definition at line 220 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPHistogramStatsData* nvsipl::SiplControlIspStatsInfo::histData[2]

Holds pointers to 2 Histogram stats data, defined in NvSIPLISPStat.hpp.

Supported values for data: [0, number of pixels per color component in the ROI defined in histSettings variable].
Supported values for excludedCount: [0, number of pixels per color component in the ROI defined in histSettings variable].

Definition at line 204 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPHistogramStats* nvsipl::SiplControlIspStatsInfo::histSettings[2]

Holds pointers to 2 Histogram stats settings, defined in NvSIPLISPStat.hpp.

Definition at line 208 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPLocalAvgClipStatsData* nvsipl::SiplControlIspStatsInfo::lacData[2]

Holds pointers to 2 LAC stats data, defined in NvSIPLISPStat.hpp.

Supported values for numWindowsH: [1, 32]
Supported values for numWindowsV: [1, 32]
Supported values for average: [0.0, 1.0]
Supported values for maskedOffCount: [0, M]
Supported values for clippedCount: [0, M] M is the number of pixels per color component in the window.

Definition at line 192 of file NvSIPLControlAutoDef.hpp.

const NvSiplISPLocalAvgClipStats* nvsipl::SiplControlIspStatsInfo::lacSettings[2]

Holds pointers to 2 LAC stats settings, defined in NvSIPLISPStat.hpp.

Definition at line 197 of file NvSIPLControlAutoDef.hpp.

The documentation for this struct was generated from the following file:
